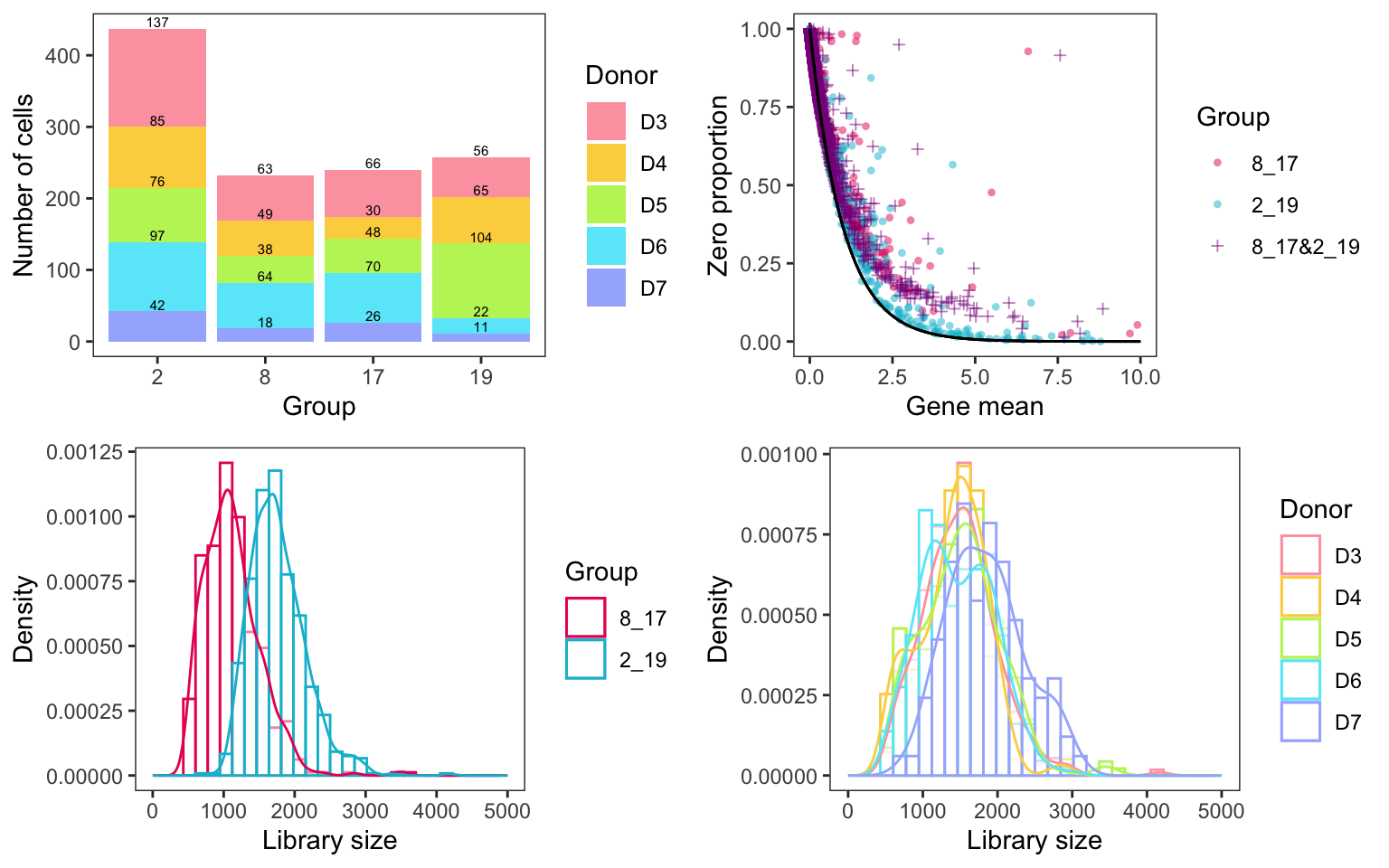

Difference in library size
Asymptotic two-sample Kolmogorov-Smirnov test
data: subset(count_cell_df, Group == "2_19", totalcount)$totalcount and subset(count_cell_df, Group == "8_17", totalcount)$totalcount
D = 0.63945, p-value < 2.2e-16
alternative hypothesis: two-sided
Welch Two Sample t-test
data: subset(count_cell_df, Group == "2_19", totalcount)$totalcount and subset(count_cell_df, Group == "8_17", totalcount)$totalcount
t = 16.826, df = 664.41, p-value < 2.2e-16
alternative hypothesis: true difference in means is not equal to 0
95 percent confidence interval:
541.7696 684.9243
sample estimates:
mean of x mean of y

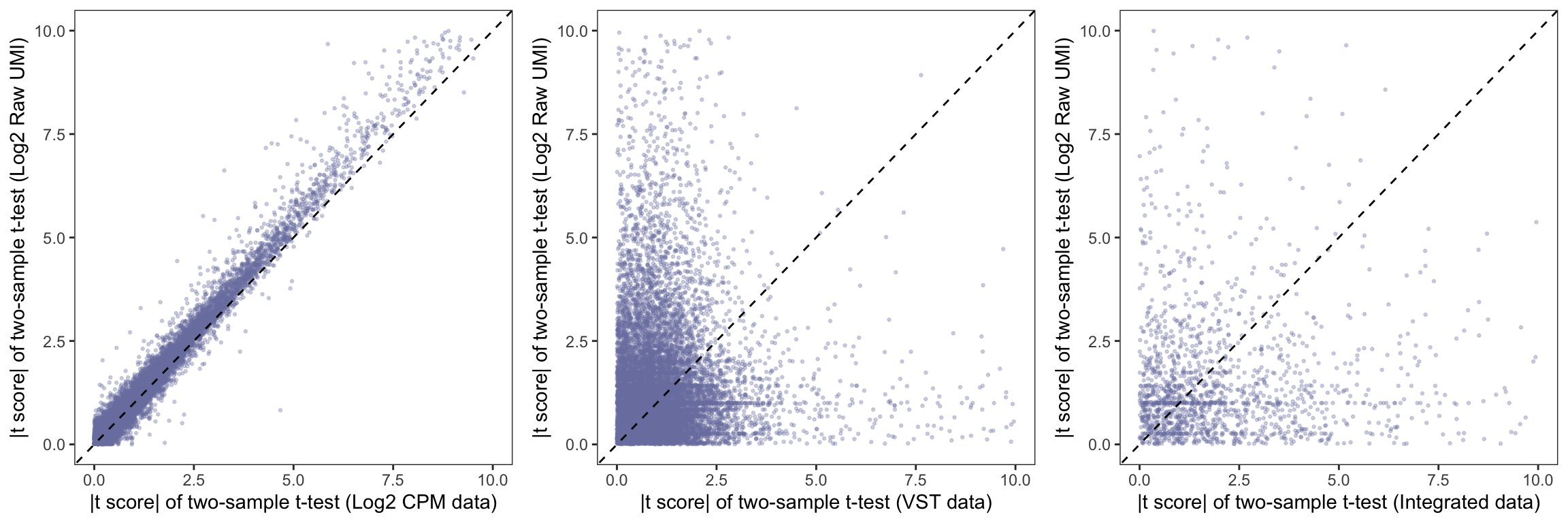

1763.355 1150.008 Mean difference in raw data/normalized data

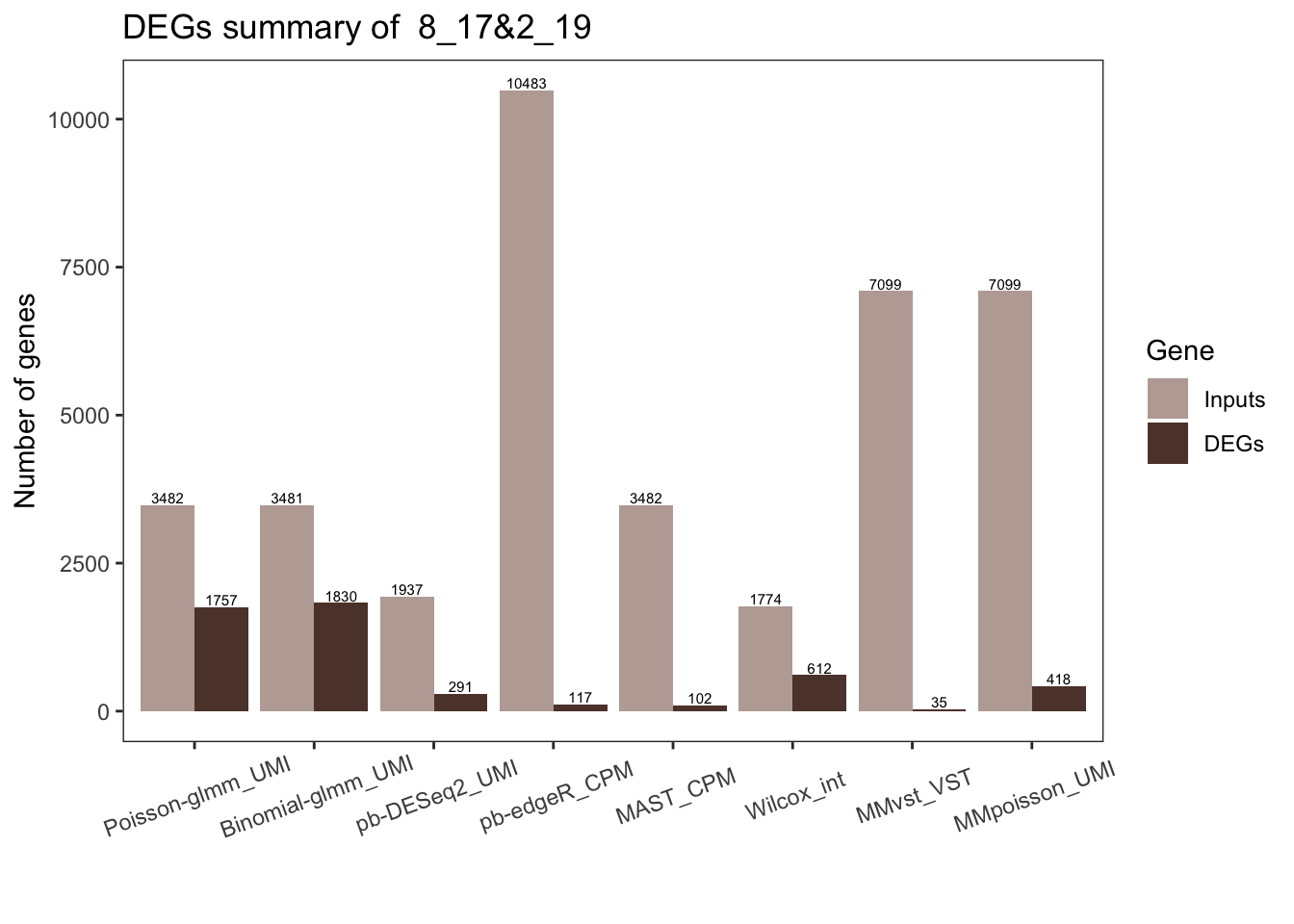

Number of DEGs from each method

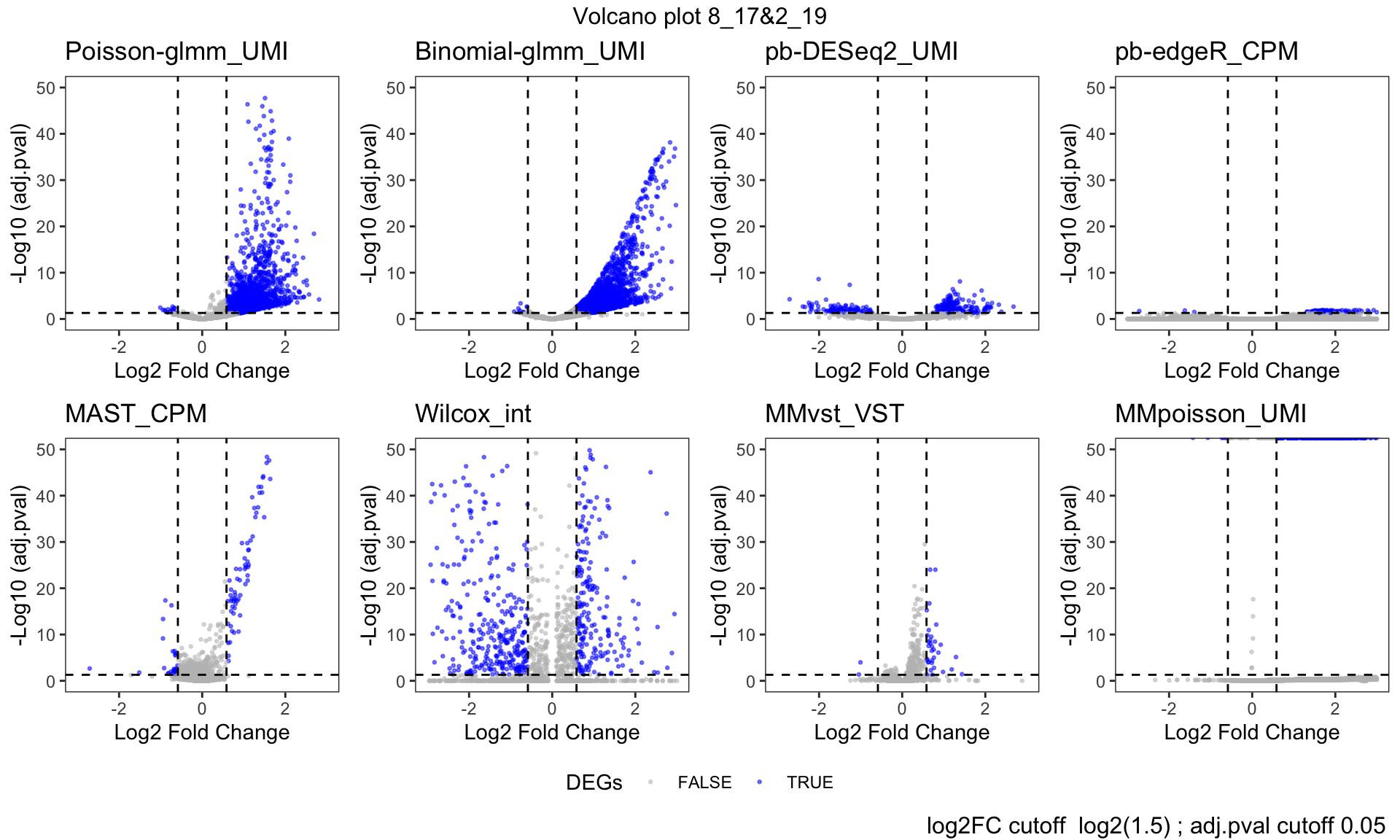

Volcano plot

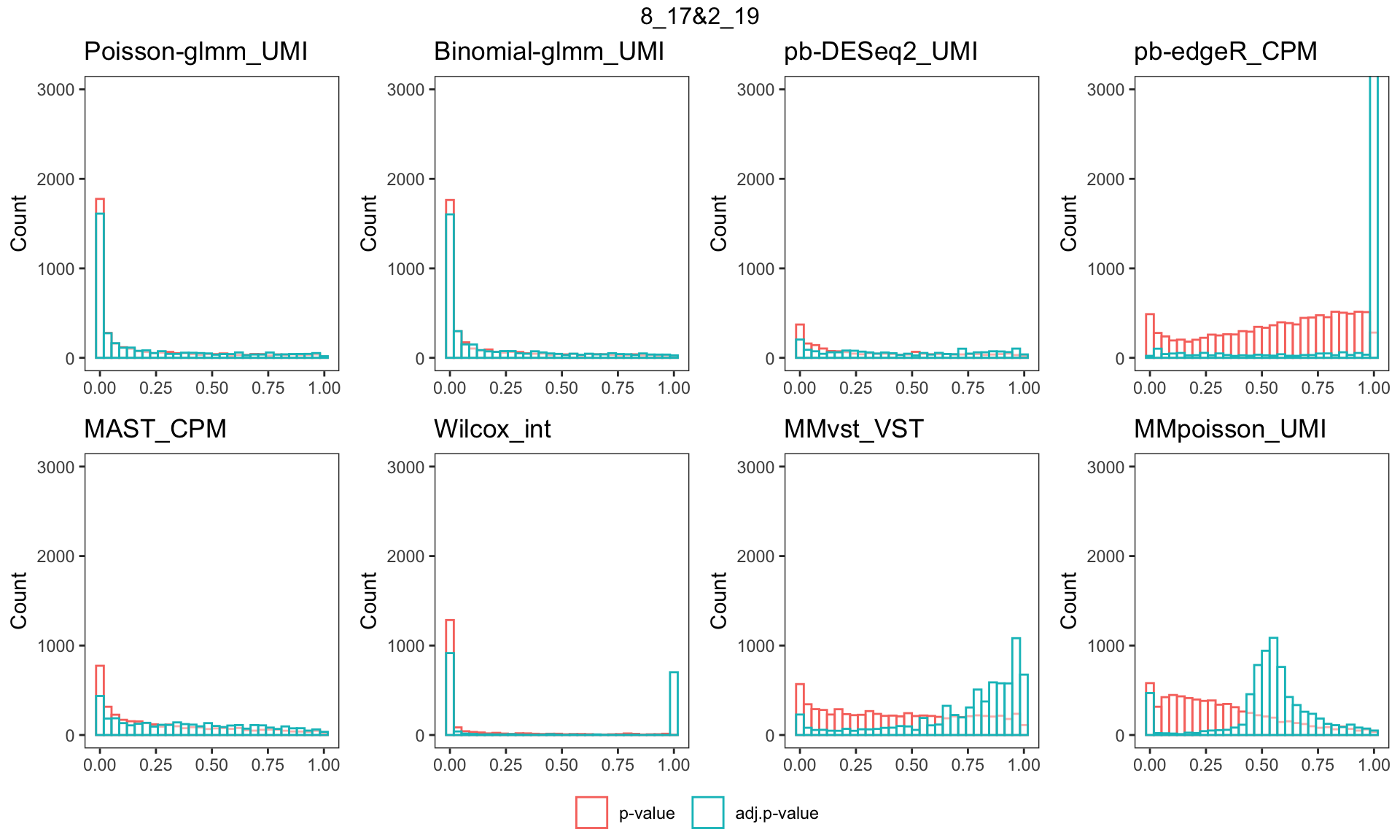

Histogram of p-value/adj.p-value

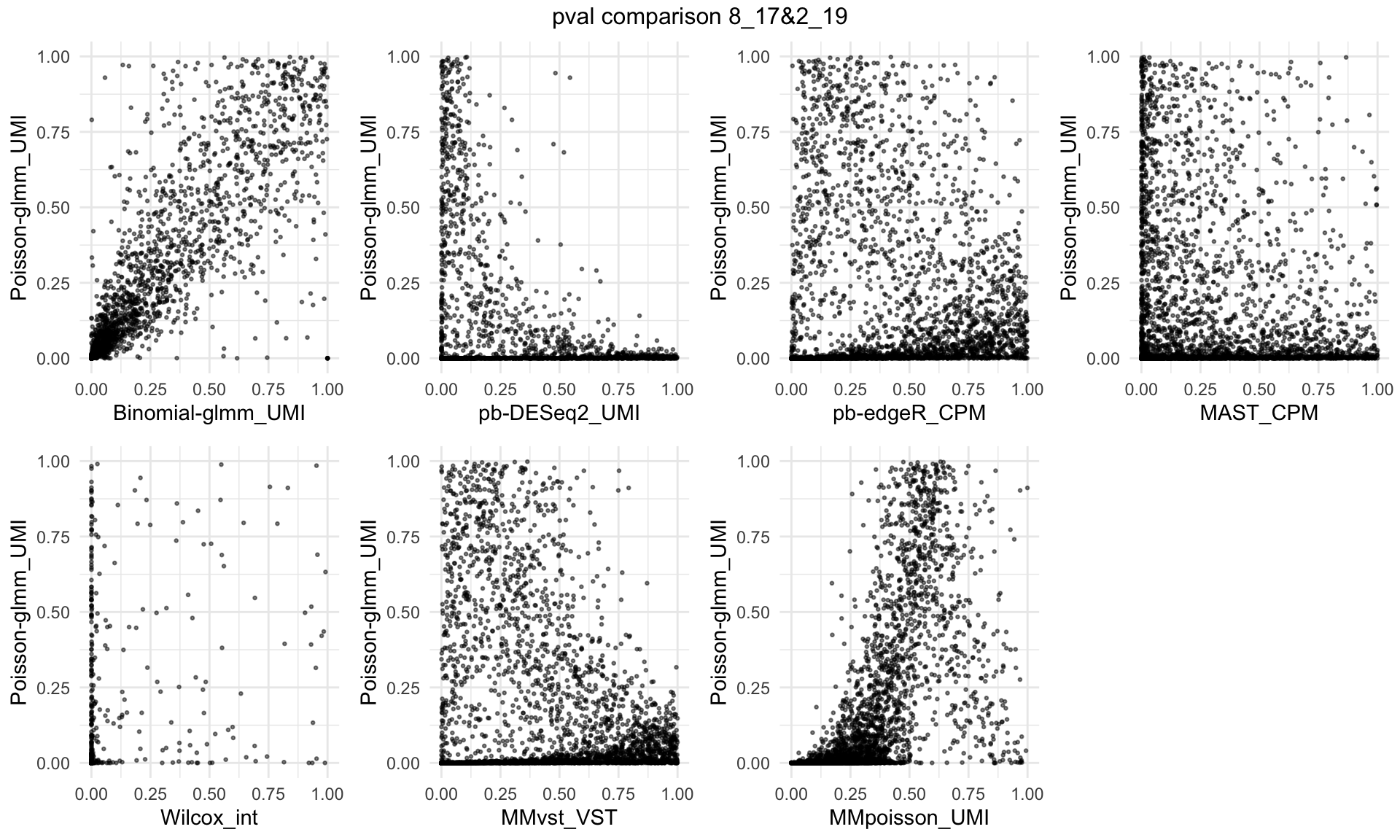

P-Value comparison across different methods

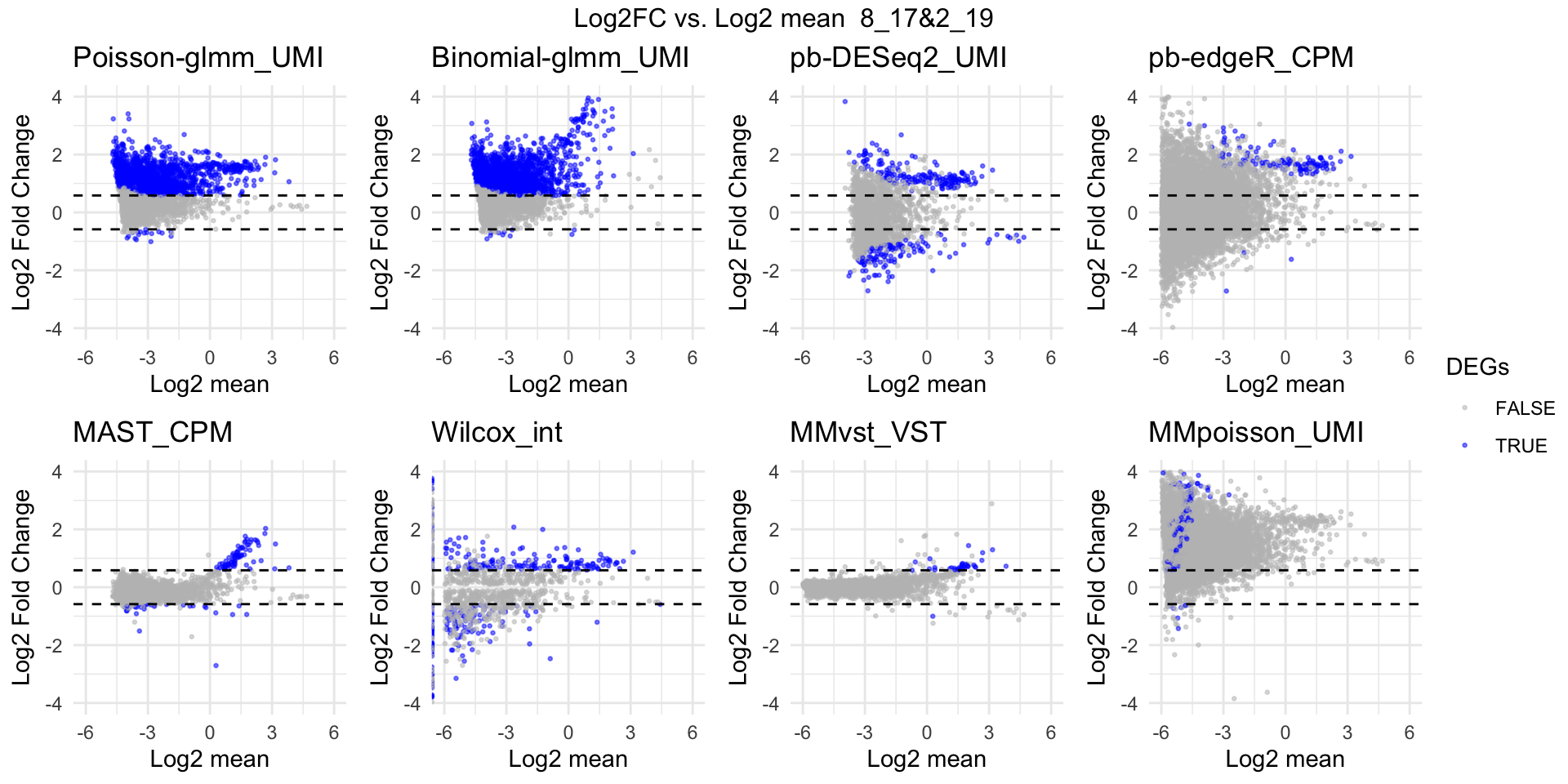

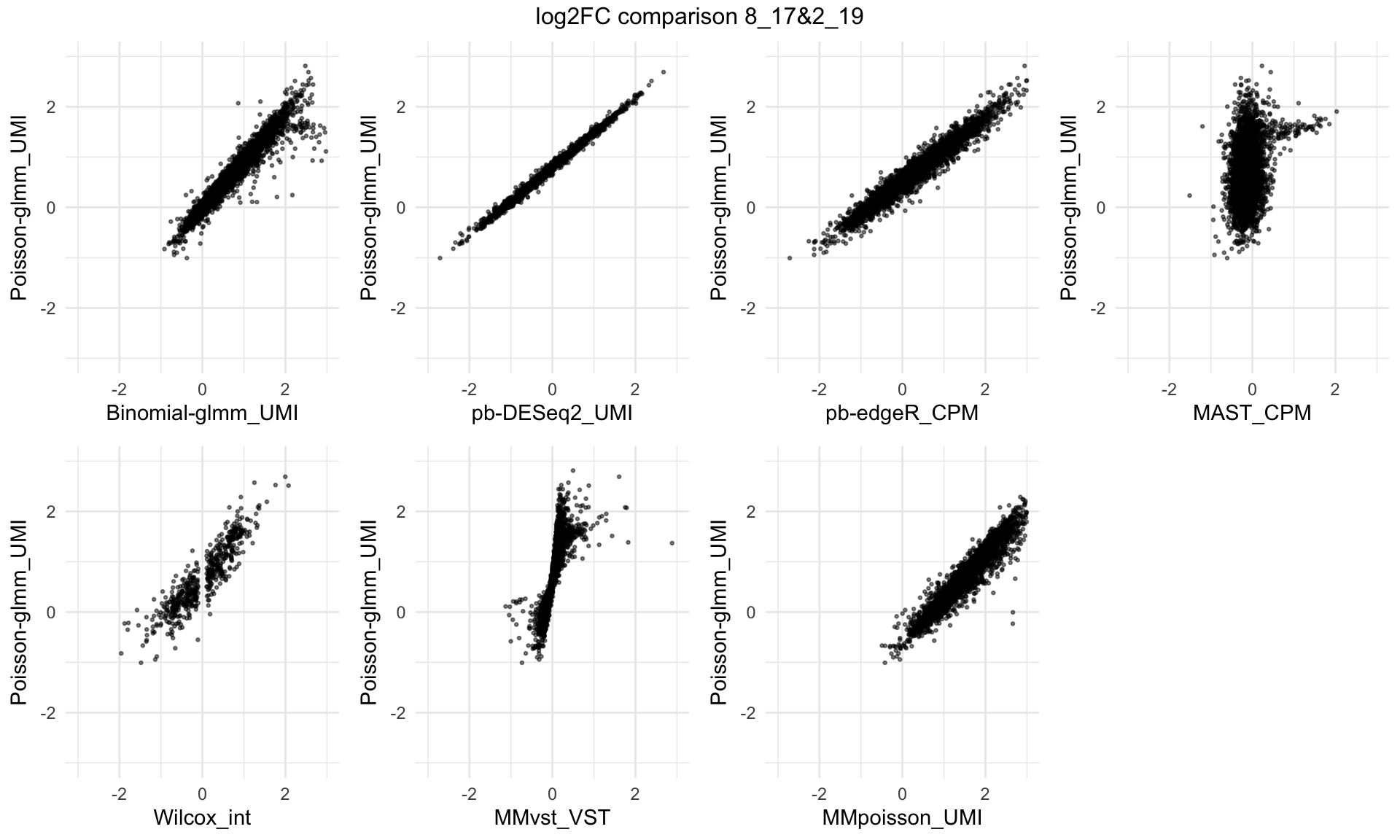

Log2 fold change comparison across different methods

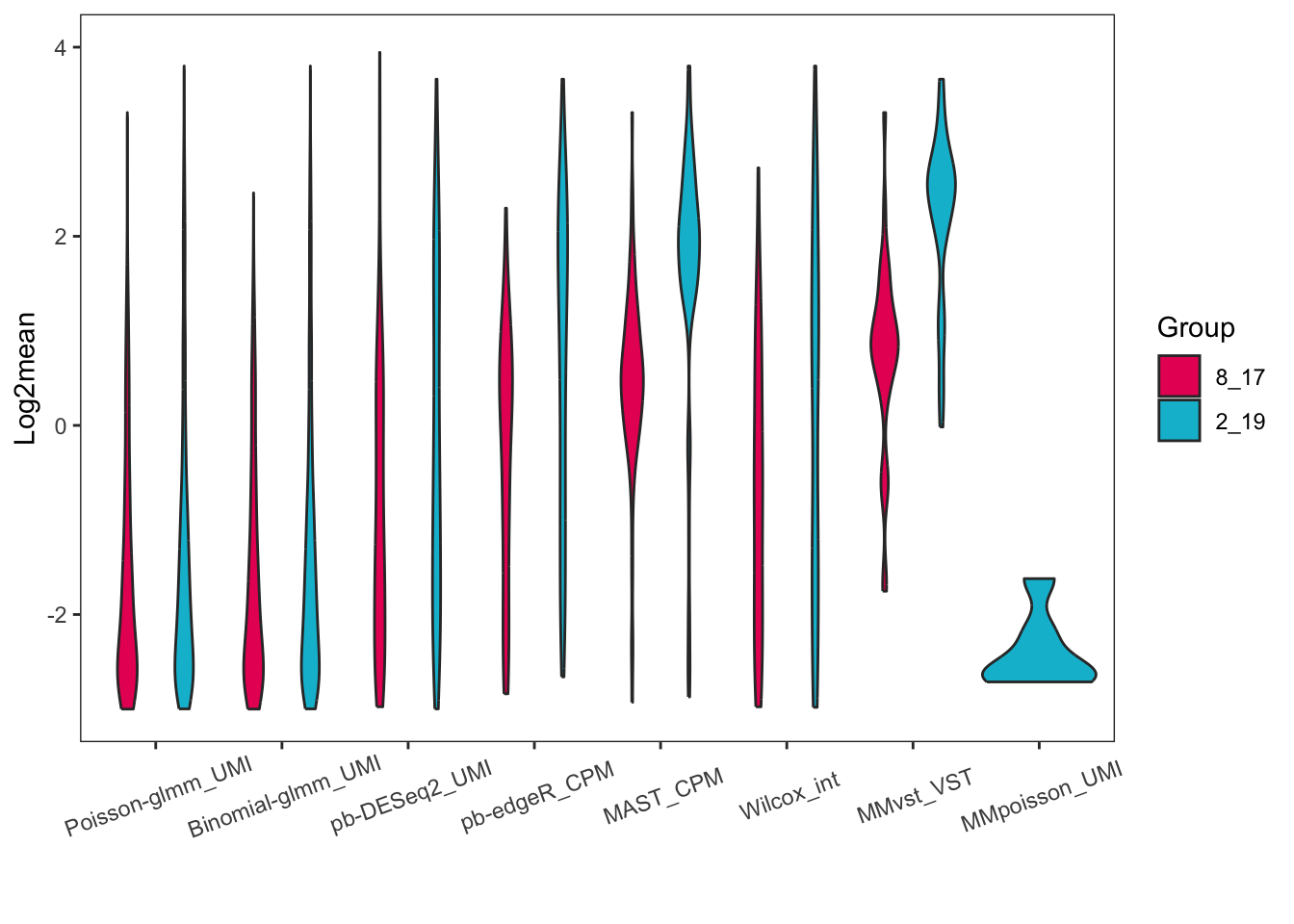

Violin plot of log2mean of DEGs

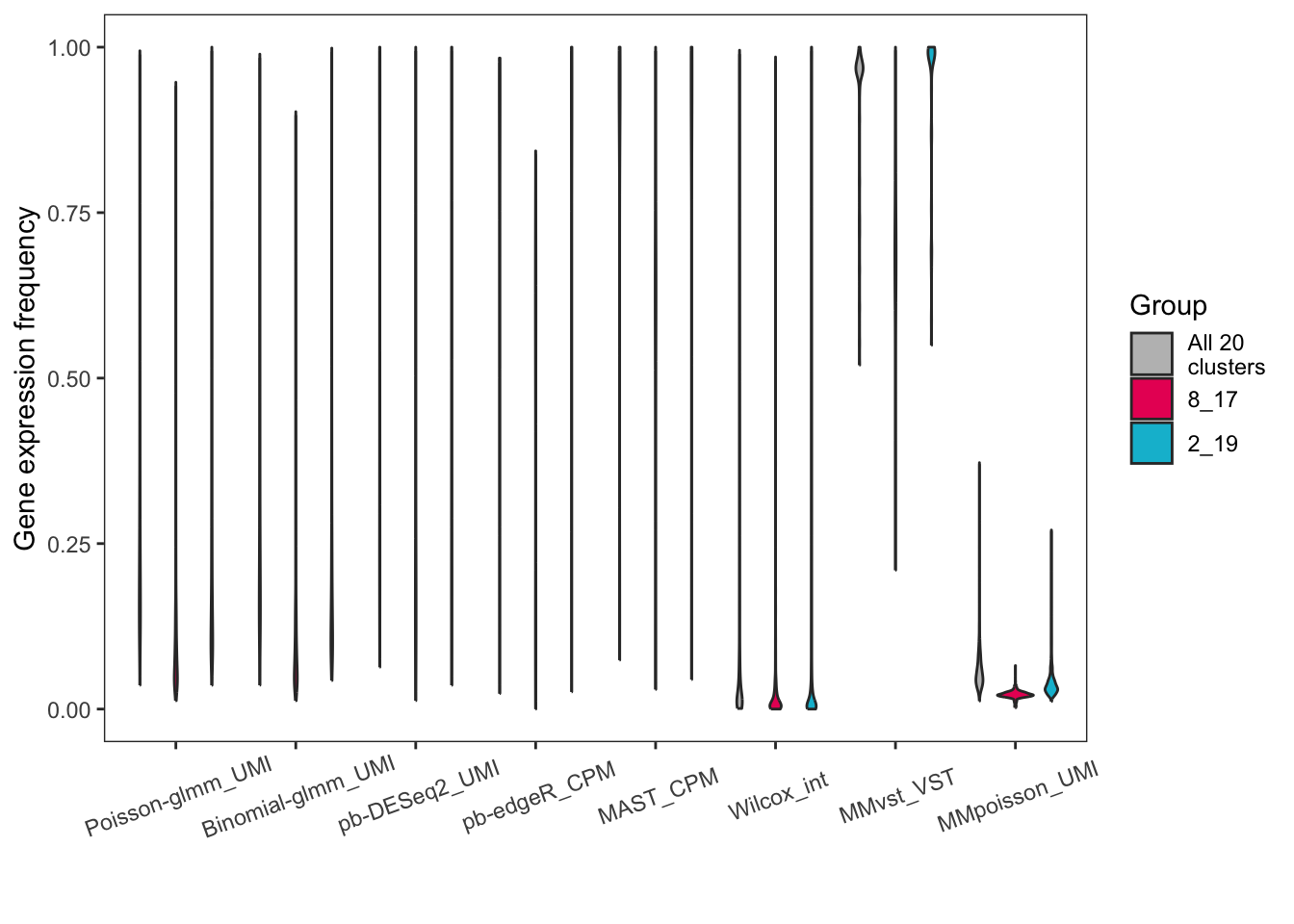

Violin plot of gene expression frequency of DEGs

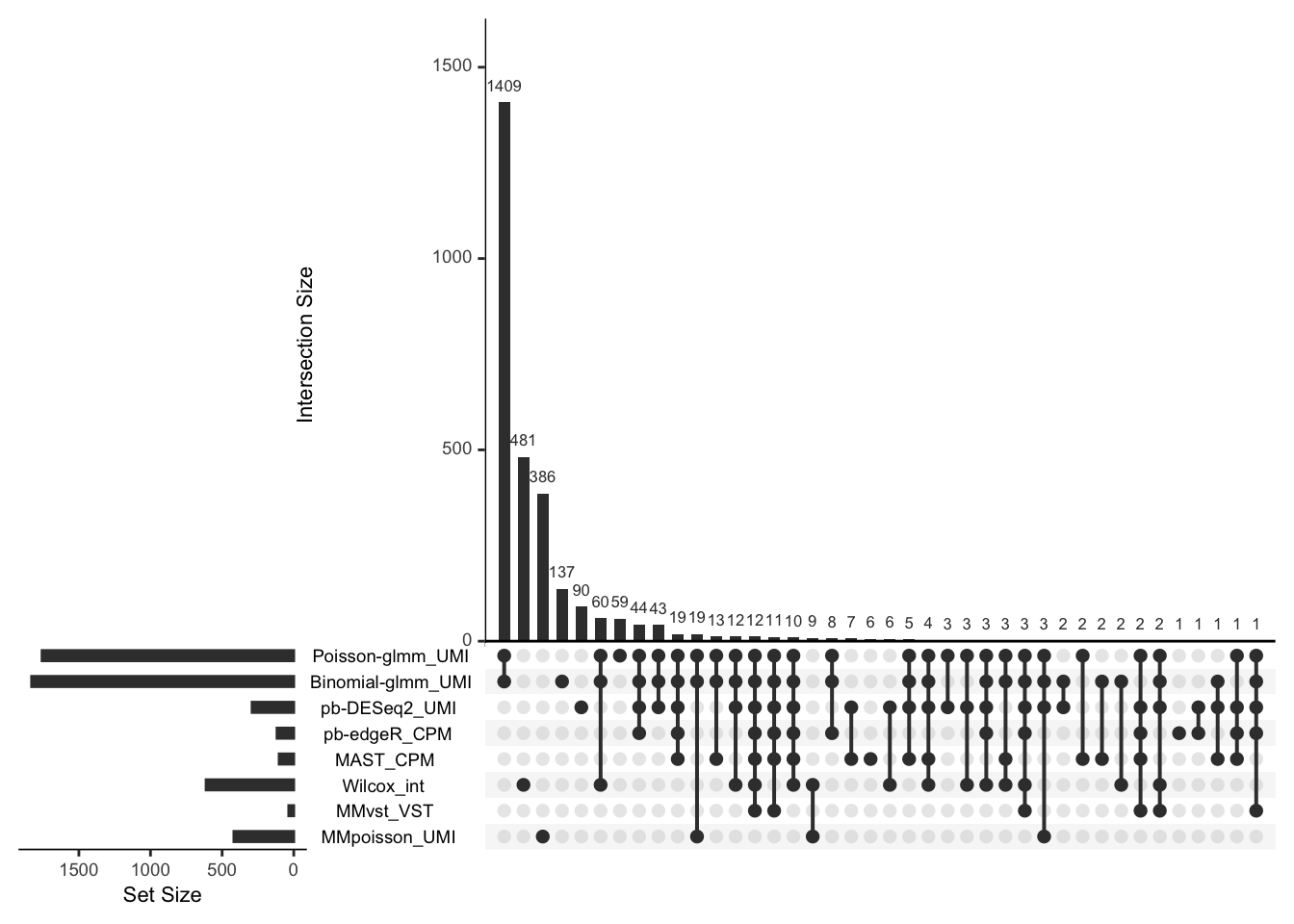

Upset plot
Heatmap of top DEGs

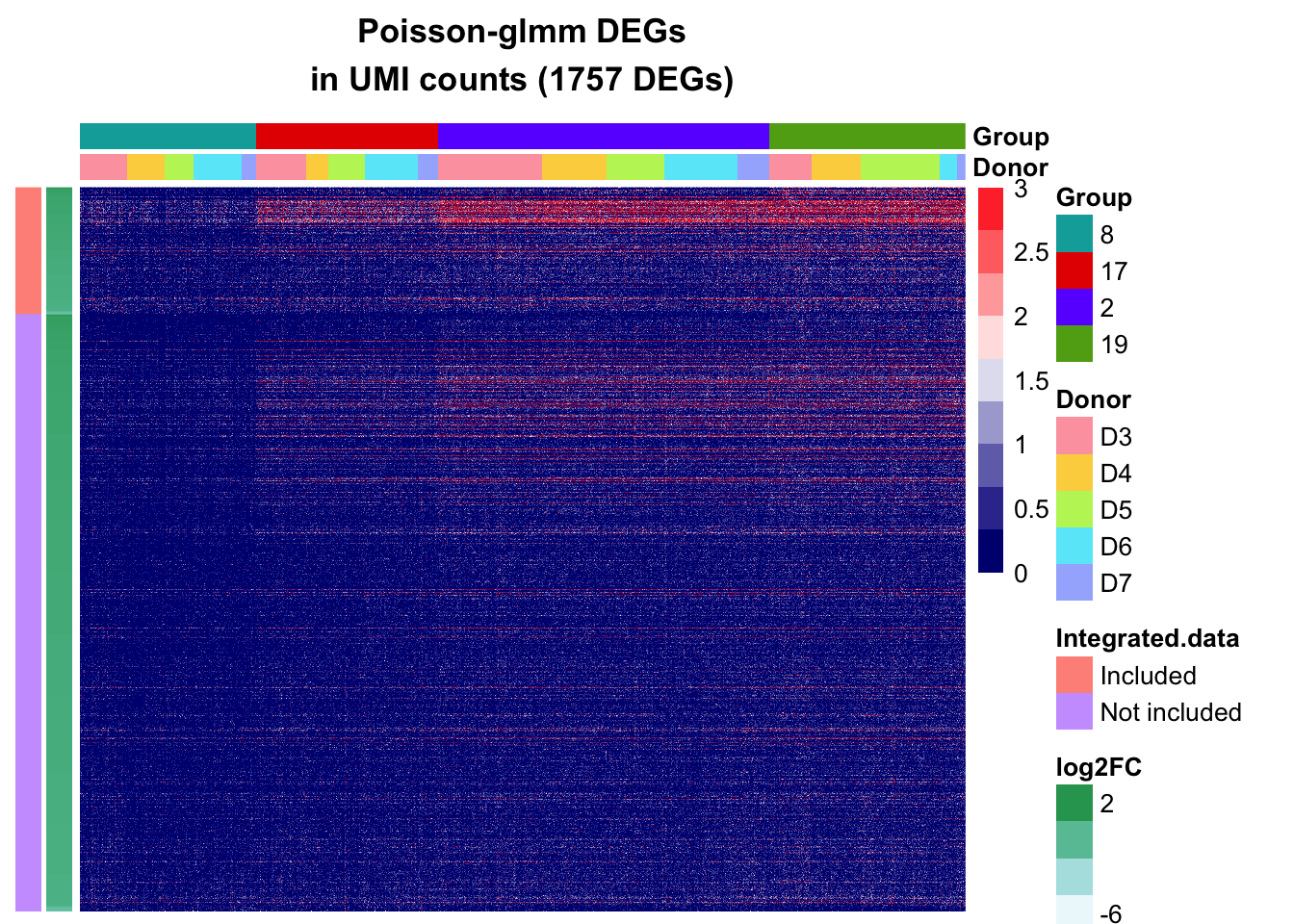

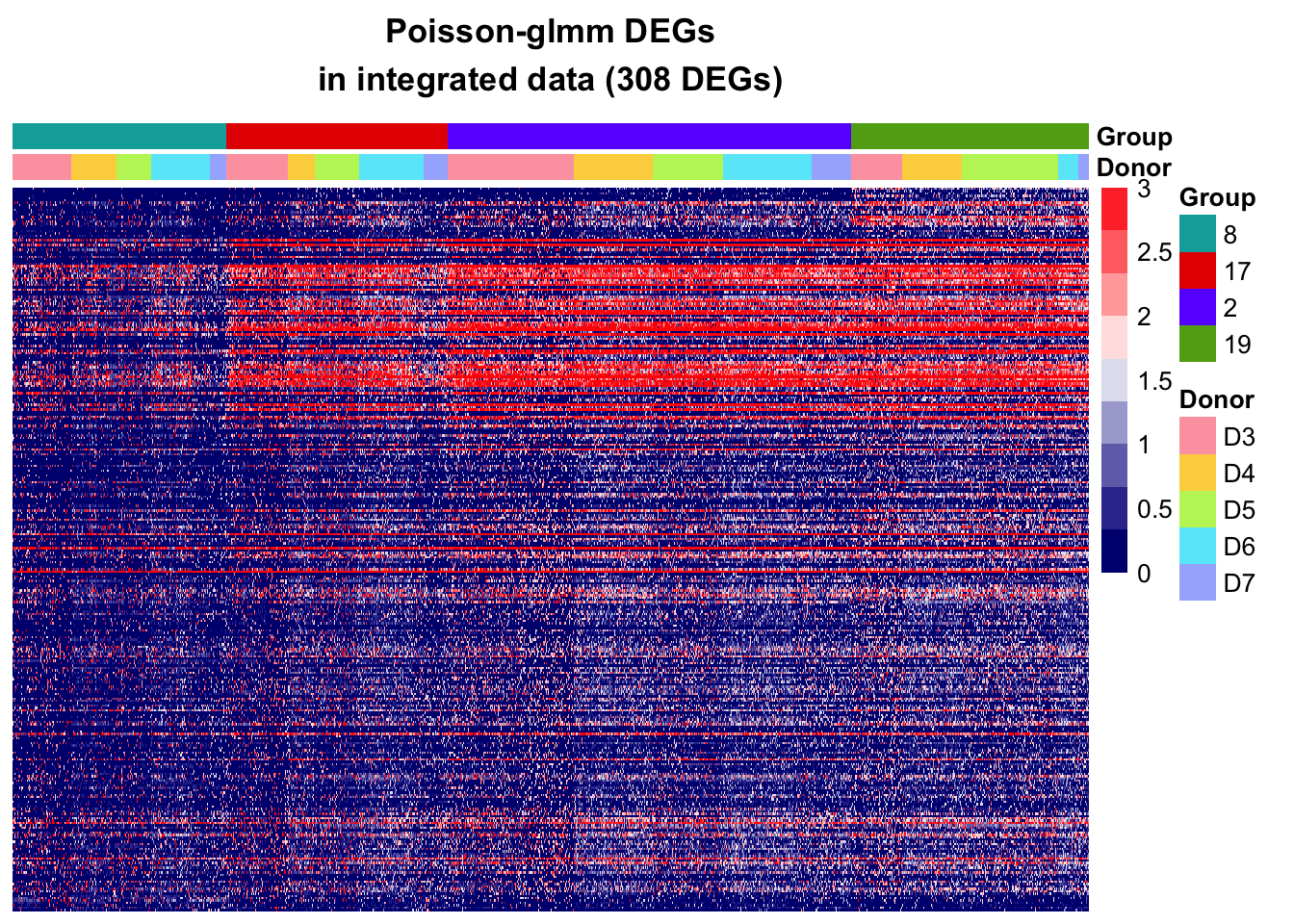

Poisson-glmm DEGs
UMI counts

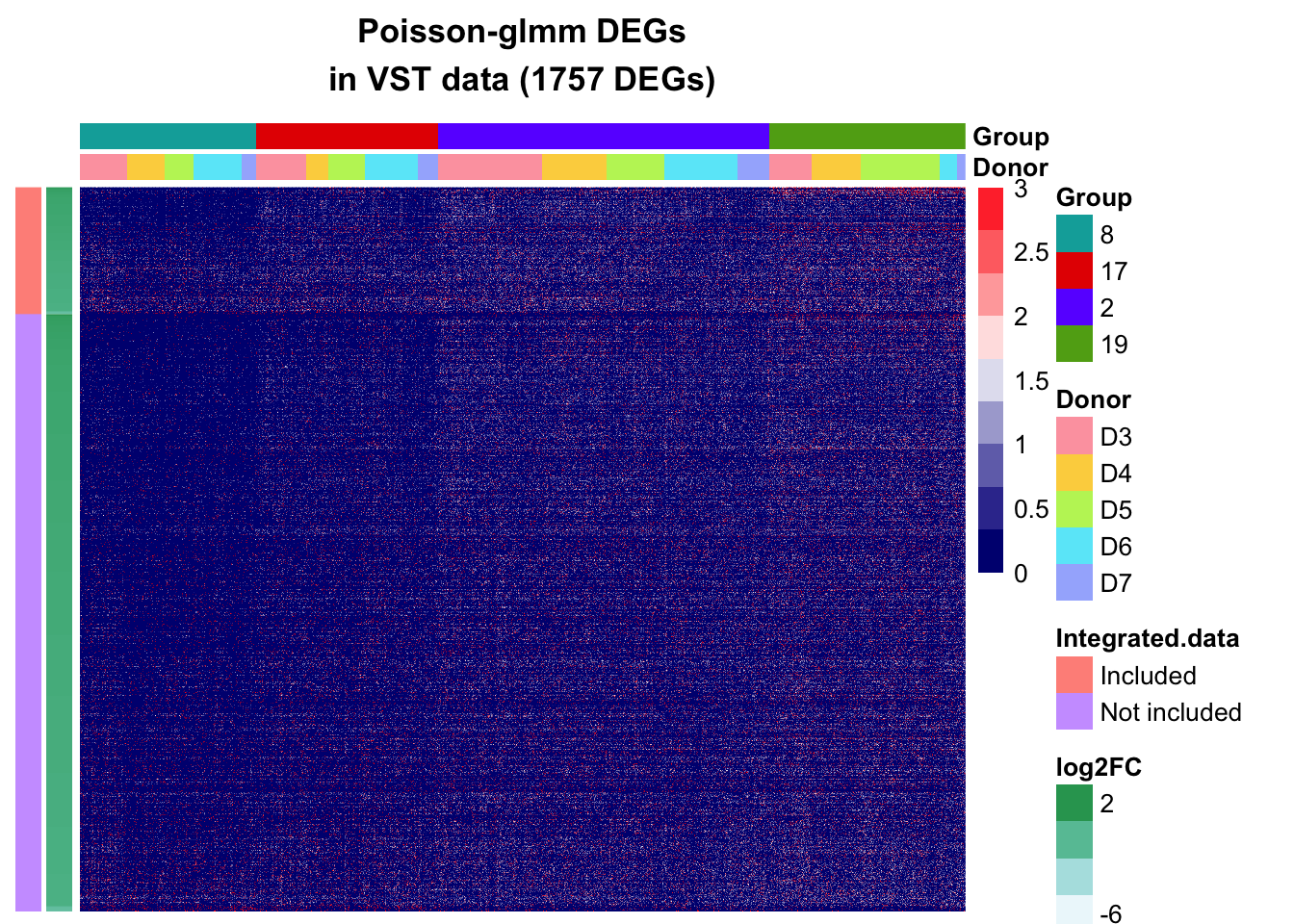

VST data

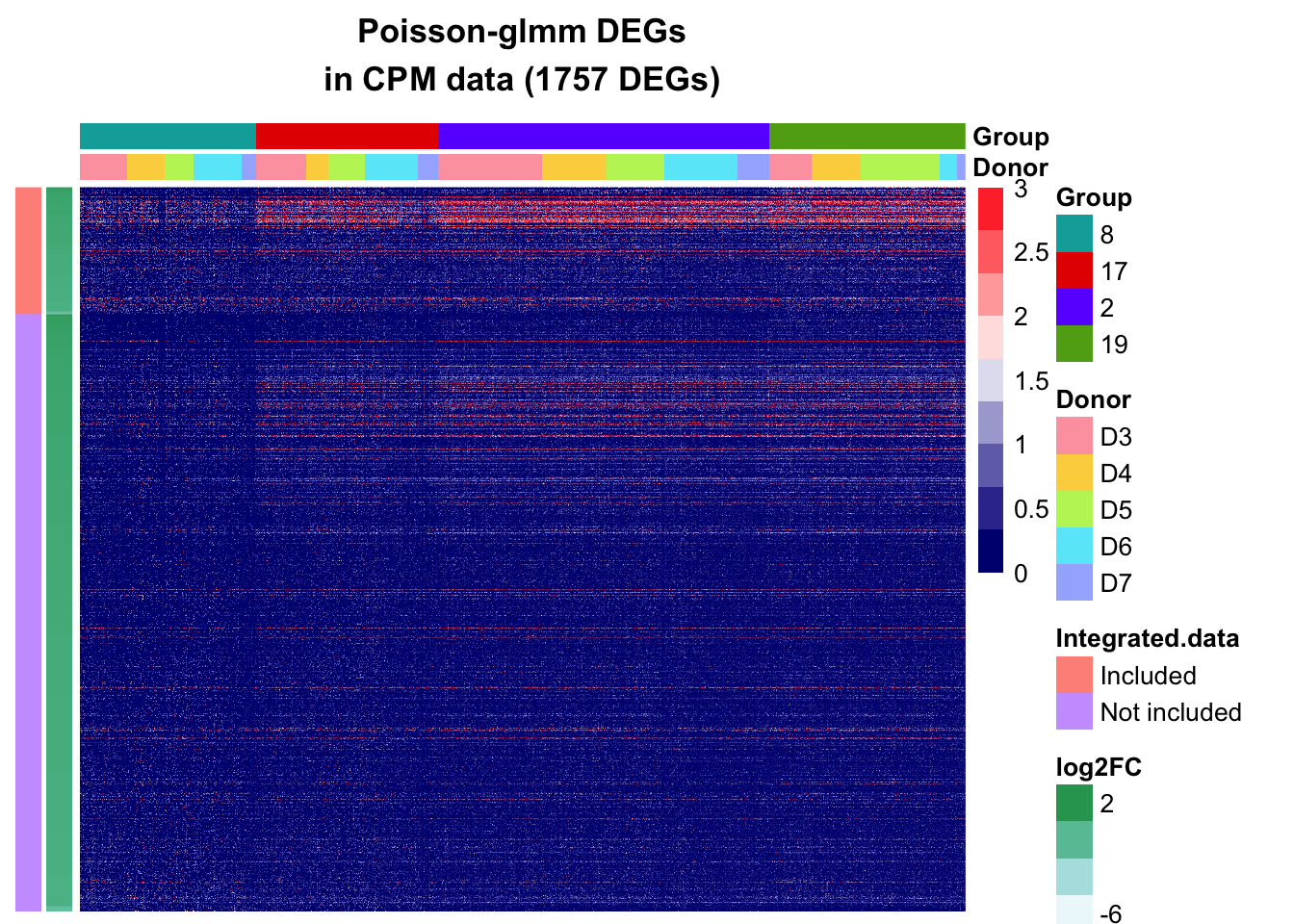

CPM data

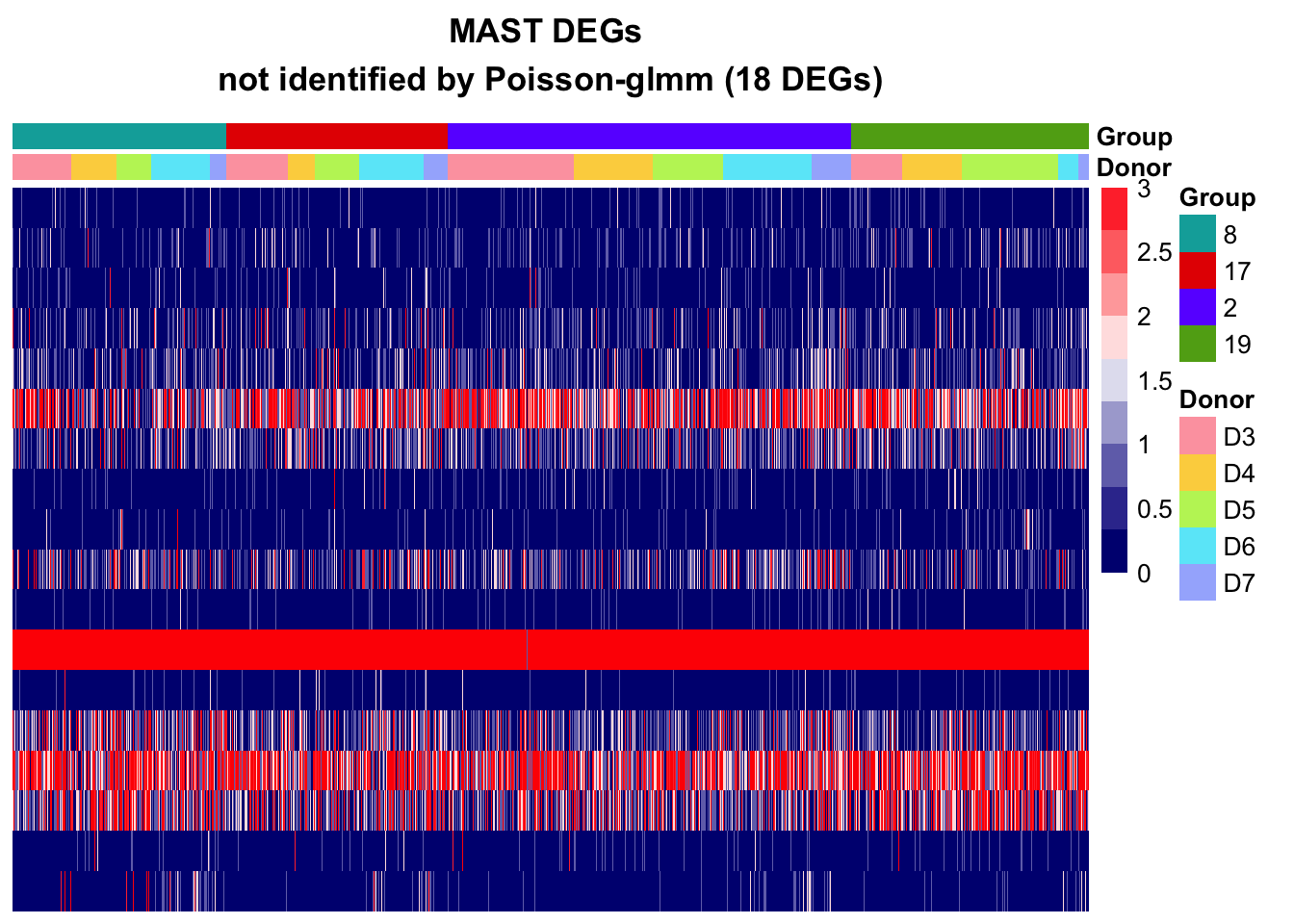

Additional DEGs from other methods

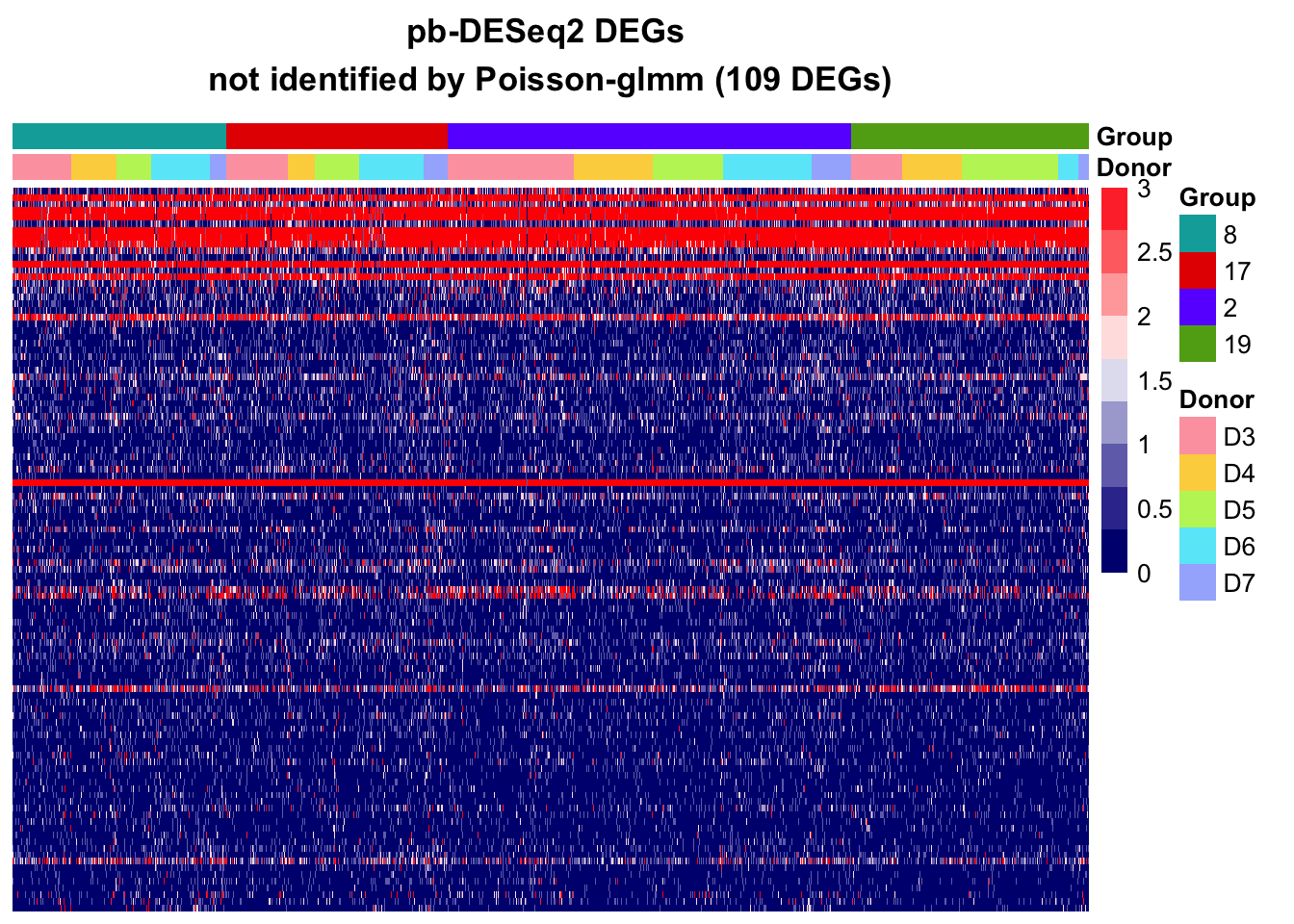

pb-DESeq2

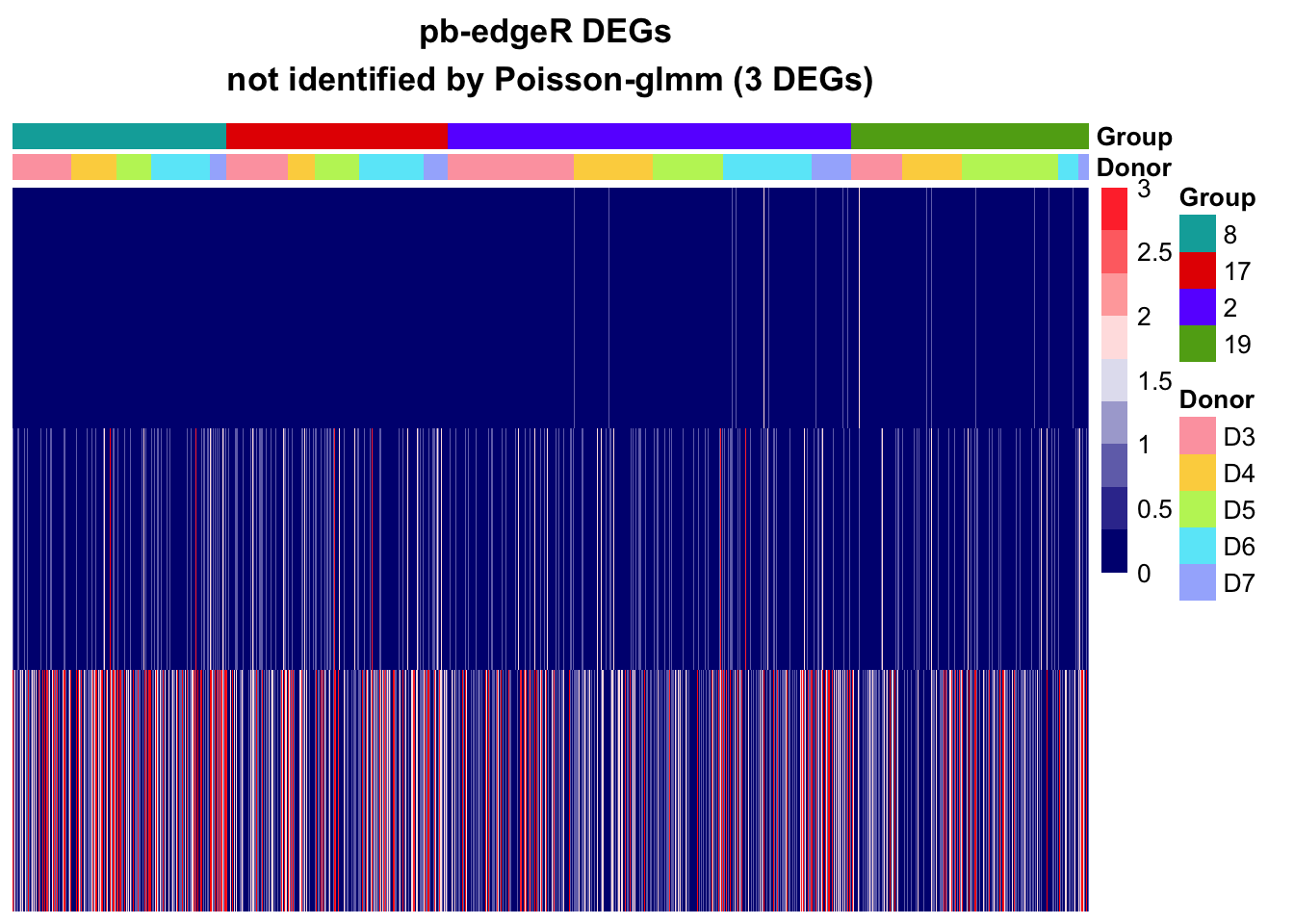

pb-edgeR
Binomial-glmm

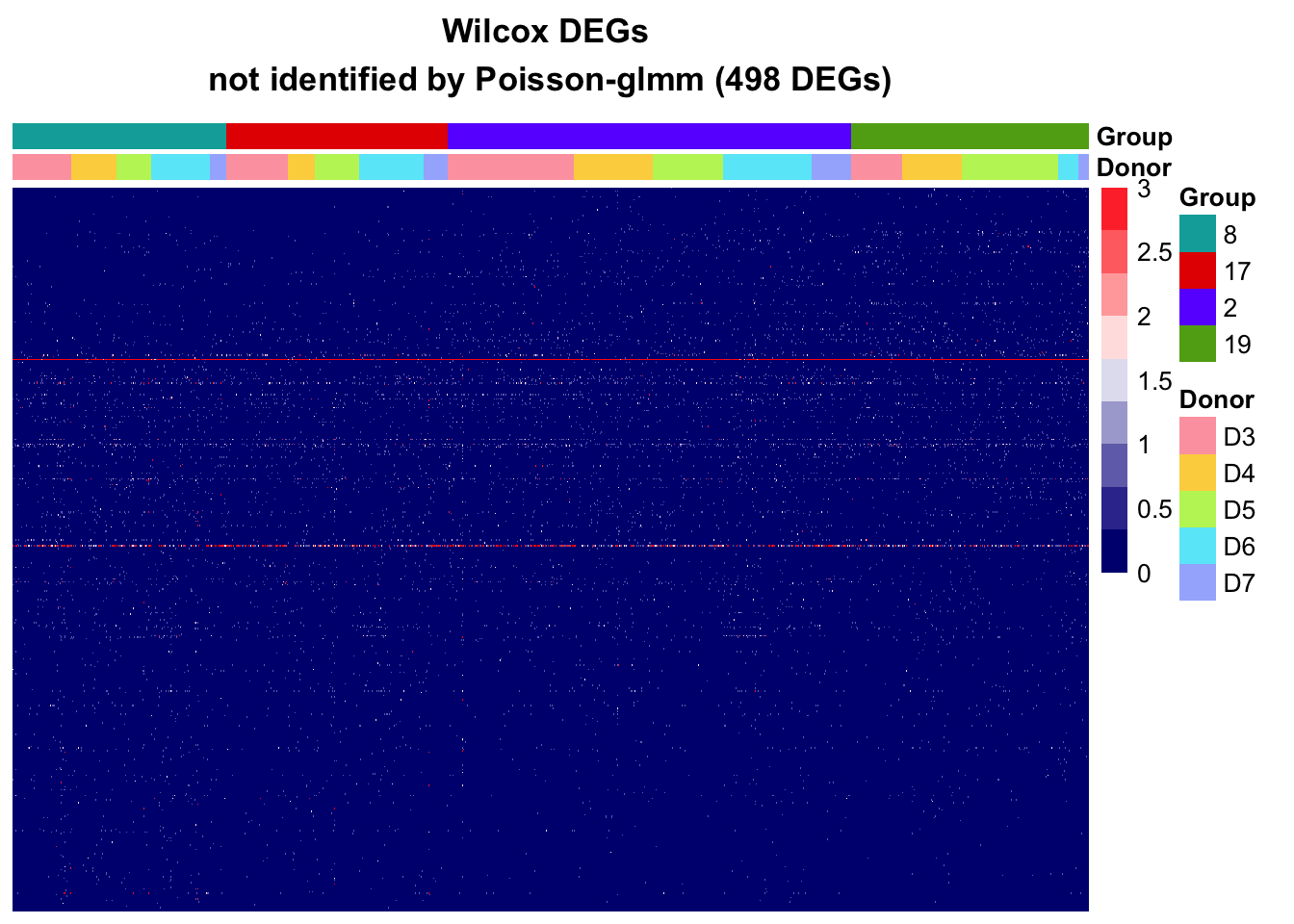

Wilcox

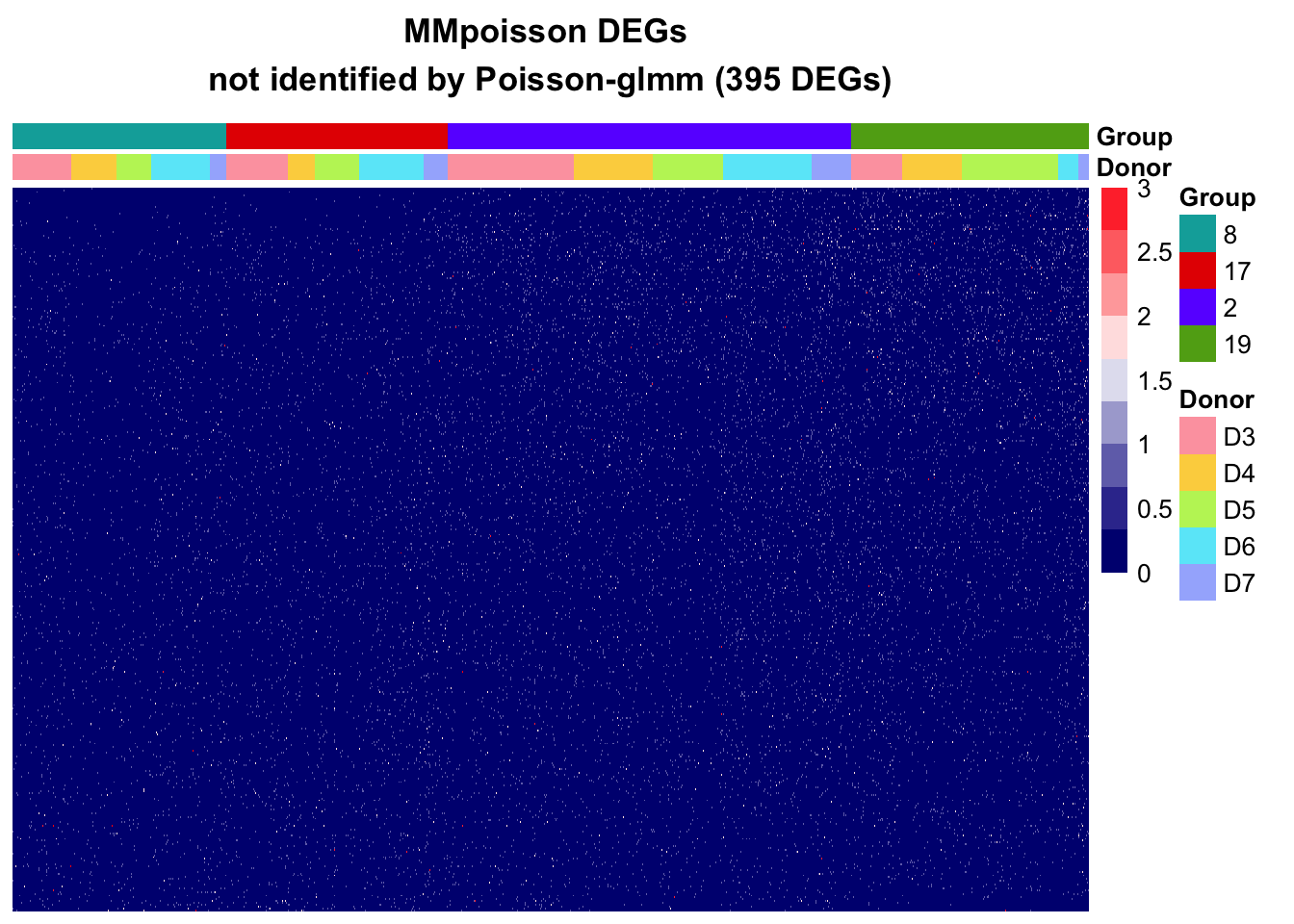

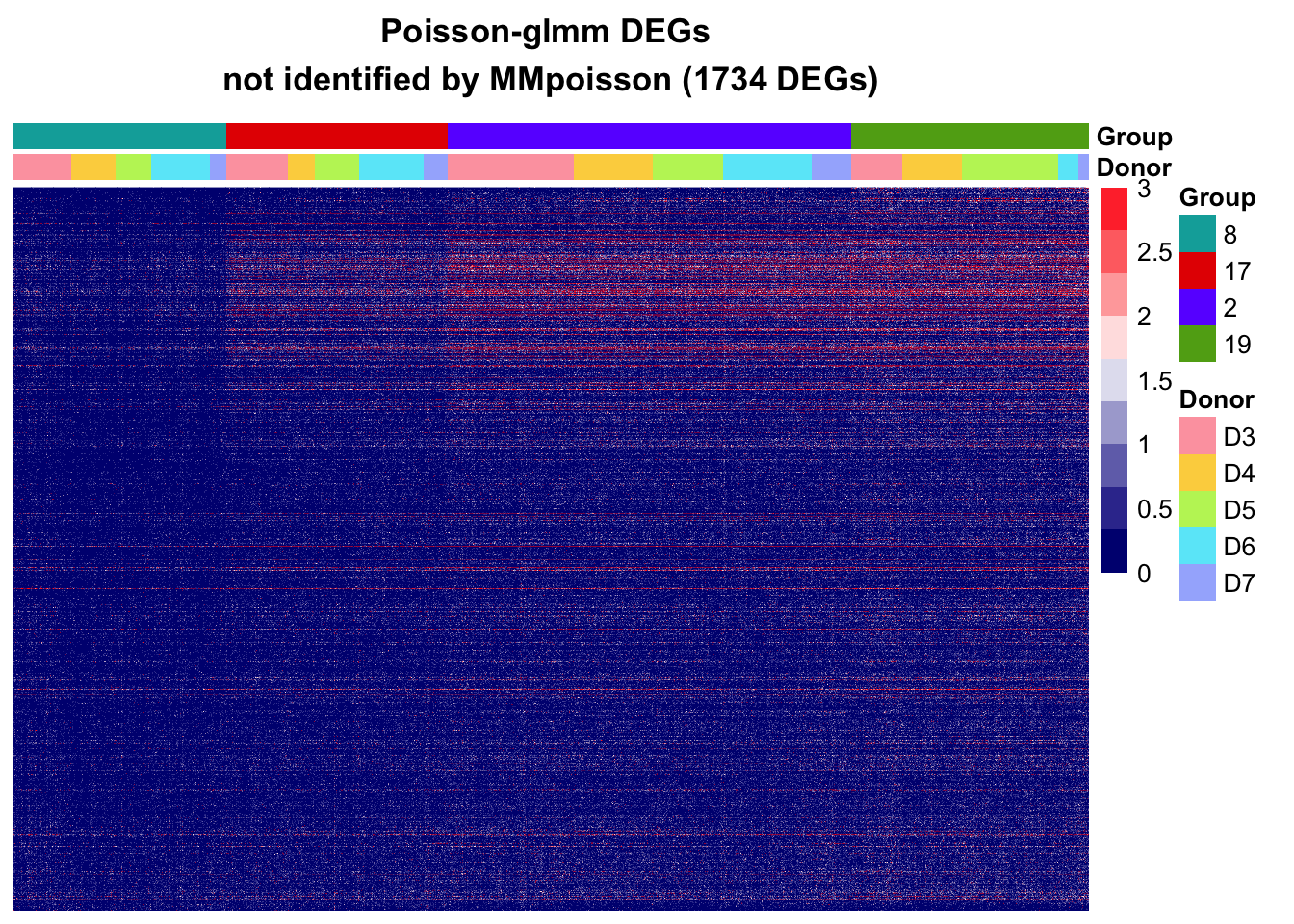

DEGs in Poisson-glmm not identified by MMpoisson
In the MMpoisson model, cell type is considered as a random effect. This approach treats certain aspects of cell type variations as random factors. Consequently, it may obscure the true variation in cell types, limiting its ability to accurately reveal the specific differences between different cell types.
Additionally, the library size is employed as an offset to normalize the counts. That is, the model is considering rate instead of counts. Suppose some genes are highly expressed in one cell type than the other, the absolute difference could be eliminate after accounting for library size. This normalization approach may inadvertently mask certain gene expression differences between cell types.

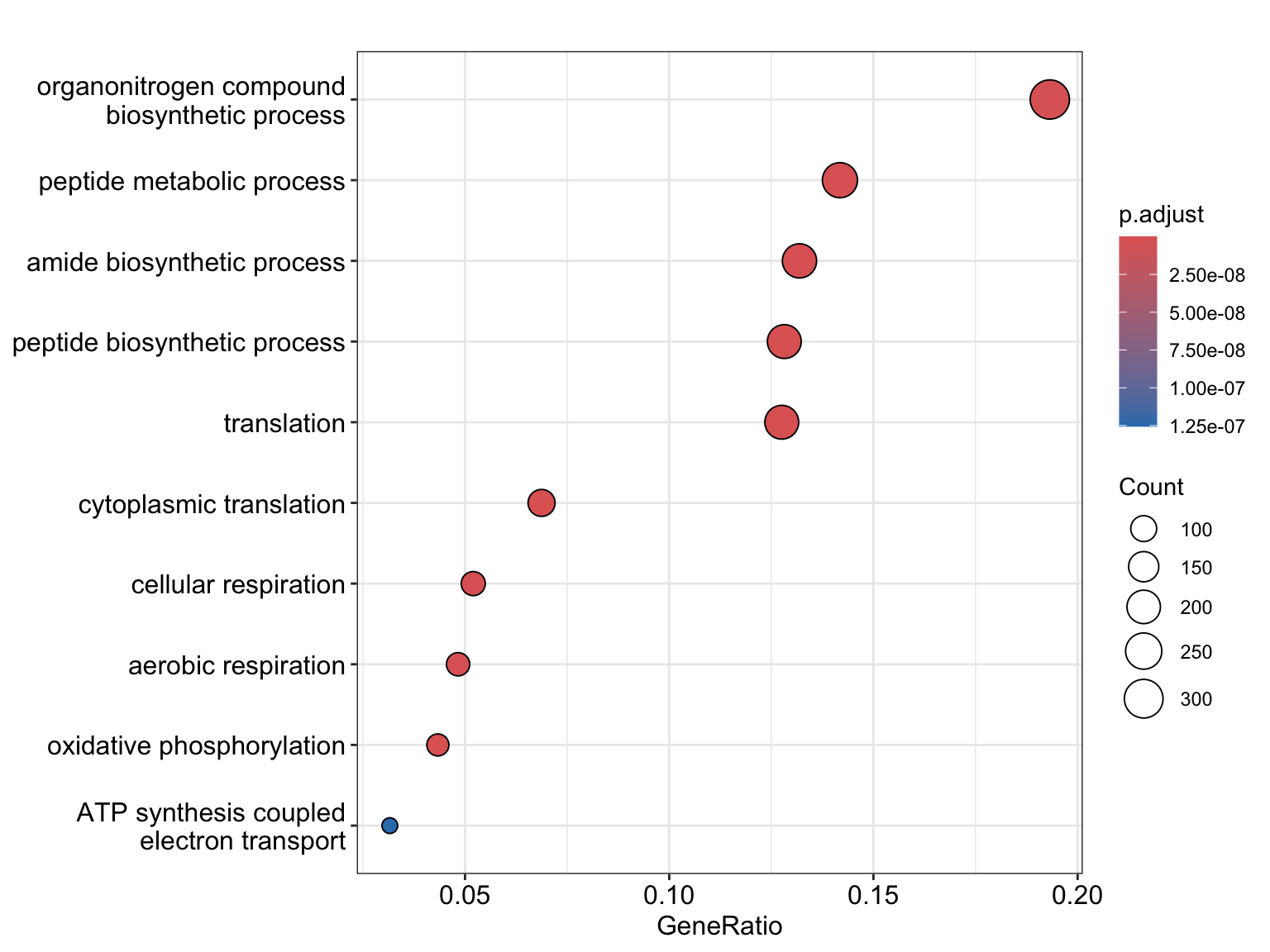

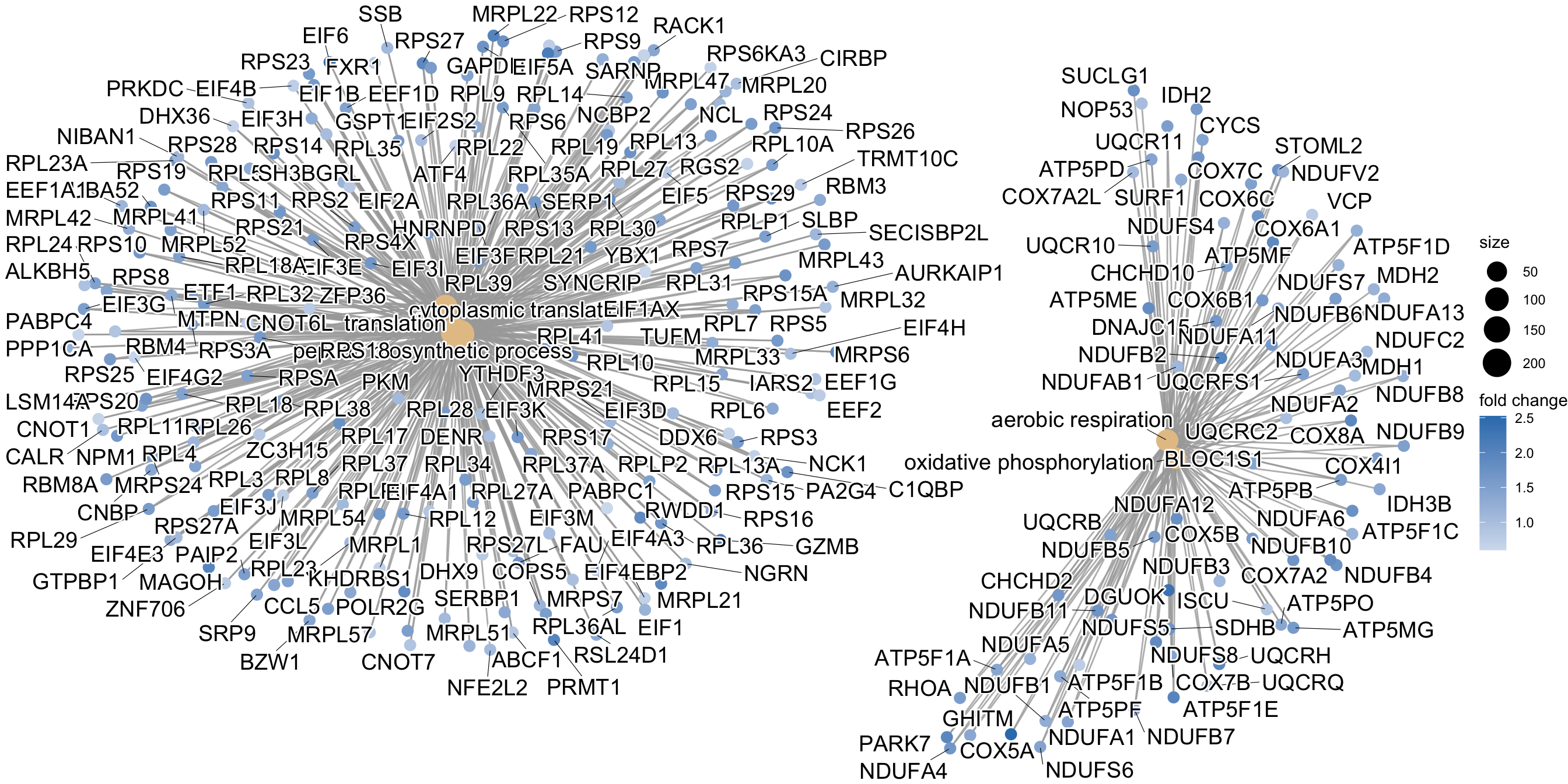

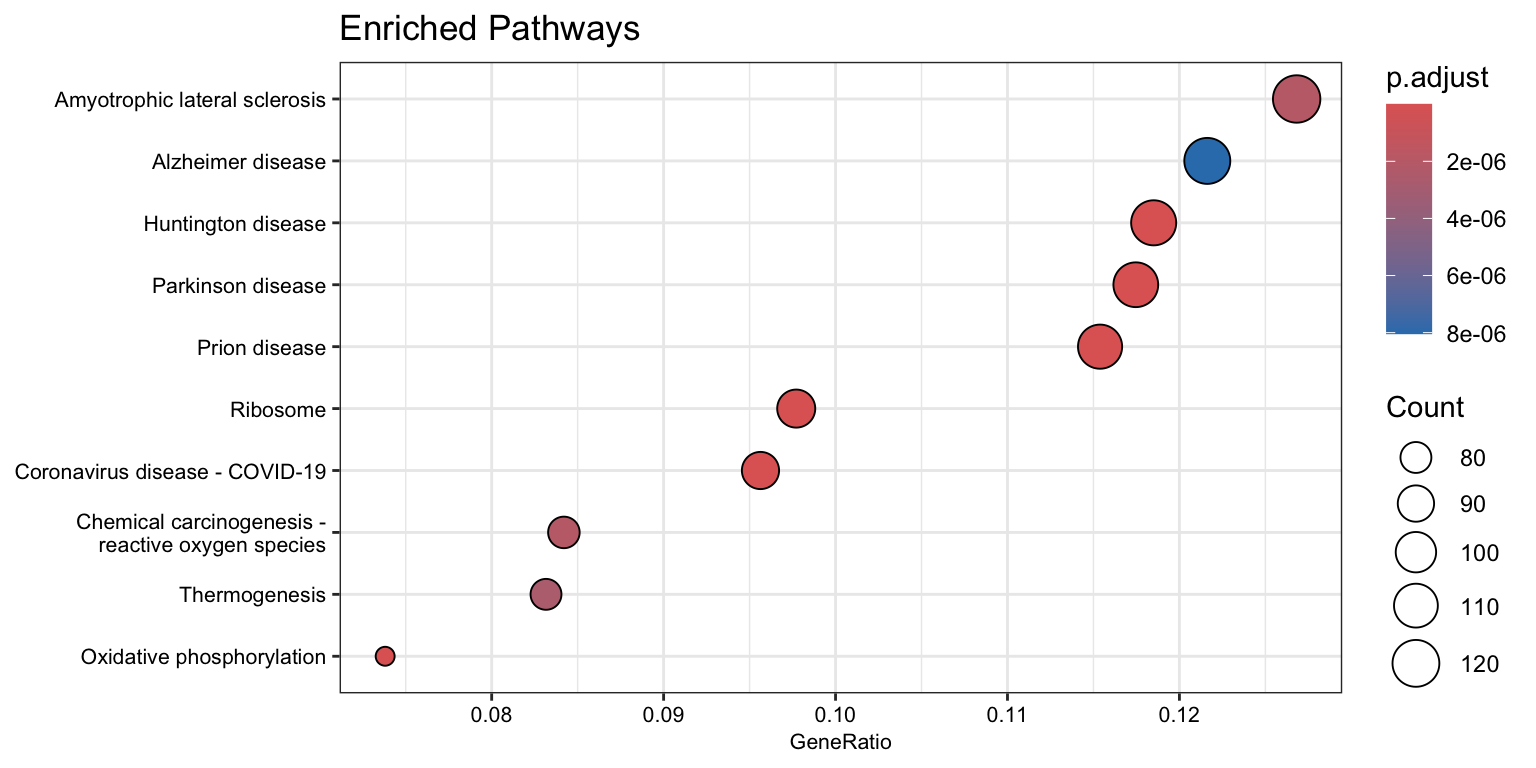

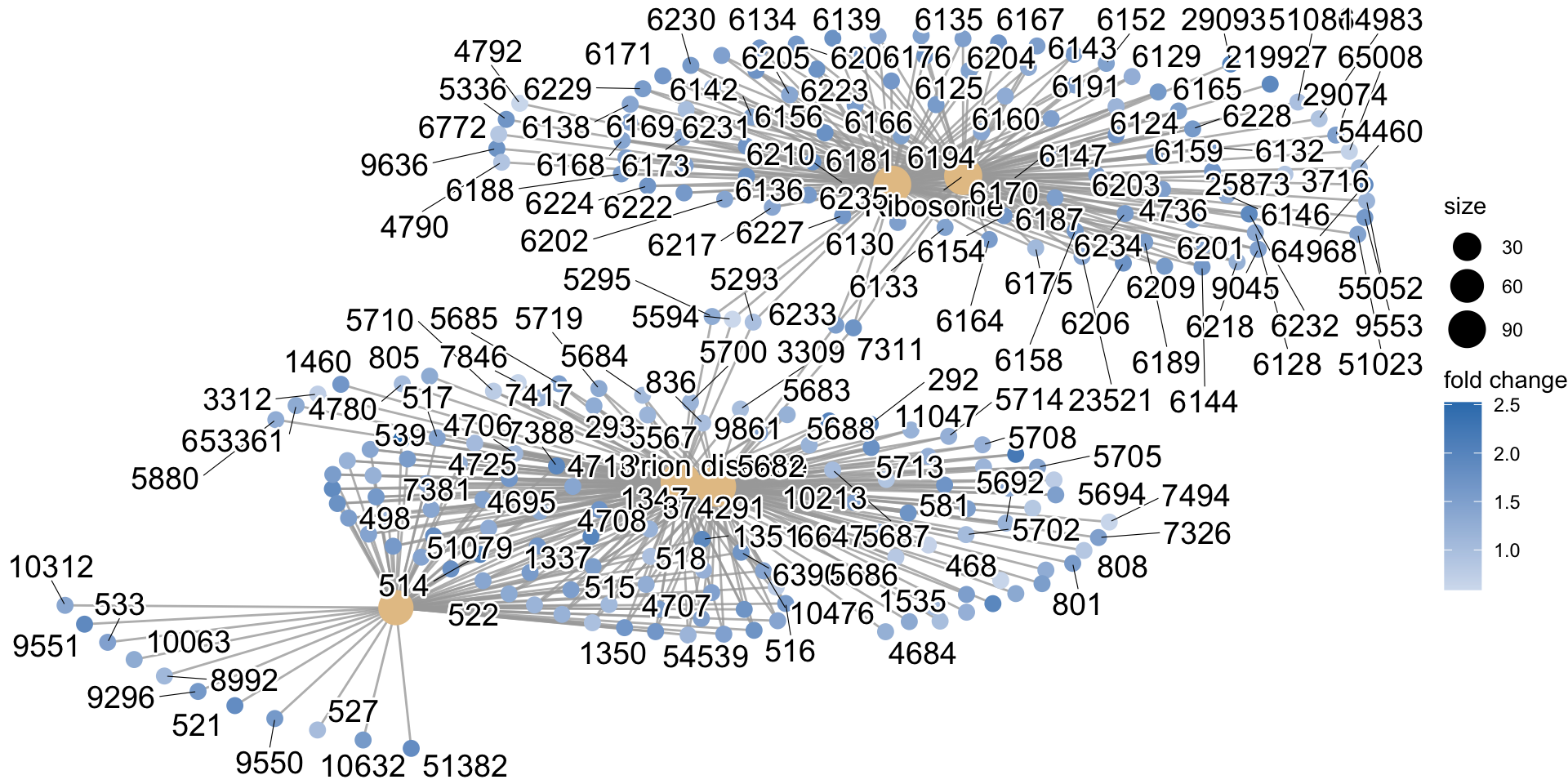

Enrichment analysis
