Simulation for donor effect

workflowr

• Summary
• Checks
• Past versions

Last updated: 2024-11-09

Checks: 7 0

Knit directory: DEanalysis/

This reproducible R Markdown analysis was created with workflowr (version 1.7.1). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.

---

R Markdown file: up-to-date

Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

Environment: empty

Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

Seed: set.seed(20230508)

The command set.seed(20230508) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

Session information: recorded

Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

Cache: none

Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.

File paths: relative

Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.

Repository version: b41f722

Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.

The results in this page were generated with repository version b41f722. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.

Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:

Ignored files:
    Ignored:    .Rhistory
    Ignored:    .Rproj.user/
    Ignored:    data/.Rhistory

Untracked files:
    Untracked:  .DS_Store
    Untracked:  .gitignore
    Untracked:  analysis/analysis_humanspine.Rmd
    Untracked:  data/.DS_Store
    Untracked:  data/10X_inputdata.RData
    Untracked:  data/10X_inputdata_cpm.RData
    Untracked:  data/10X_inputdata_integrated.RData
    Untracked:  data/10X_inputdata_lognorm.RData
    Untracked:  data/10Xdata_annotate.rds
    Untracked:  data/Bcells.Rmd
    Untracked:  data/Bcellsce.rds
    Untracked:  data/Kang_DEresult.RData
    Untracked:  data/Kang_data.RData
    Untracked:  data/fallopian_DEresult.RData
    Untracked:  data/fallopian_tubes.RData
    Untracked:  data/fallopian_tubes_all.RData
    Untracked:  data/human/
    Untracked:  data/human_spine.RData
    Untracked:  data/human_spine_DEresult.RData
    Untracked:  data/ls_offset_Result.RData
    Untracked:  data/mouse/
    Untracked:  data/permutation.RData
    Untracked:  data/permutation13.RData
    Untracked:  data/permutation2.RData
    Untracked:  data/splatter_simulation.RData
    Untracked:  data/vstcounts.Rdata
    Untracked:  figure/

Unstaged changes:
    Modified:   analysis/group8_17-2_19.Rmd

Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

---

These are the previous versions of the repository in which changes were made to the R Markdown (analysis/simulation_donor_effect.Rmd) and HTML (docs/simulation_donor_effect.html) files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view the files as they were in that past version.

File	Version	Author	Date	Message
Rmd	b41f722	C-HW	2024-11-09	modify runtime plot
html	612b34d	C-HW	2024-11-09	Build site.
Rmd	21d75f6	C-HW	2024-11-09	workflowr::wflow_publish("./analysis/simulation_donor_effect.Rmd")

---

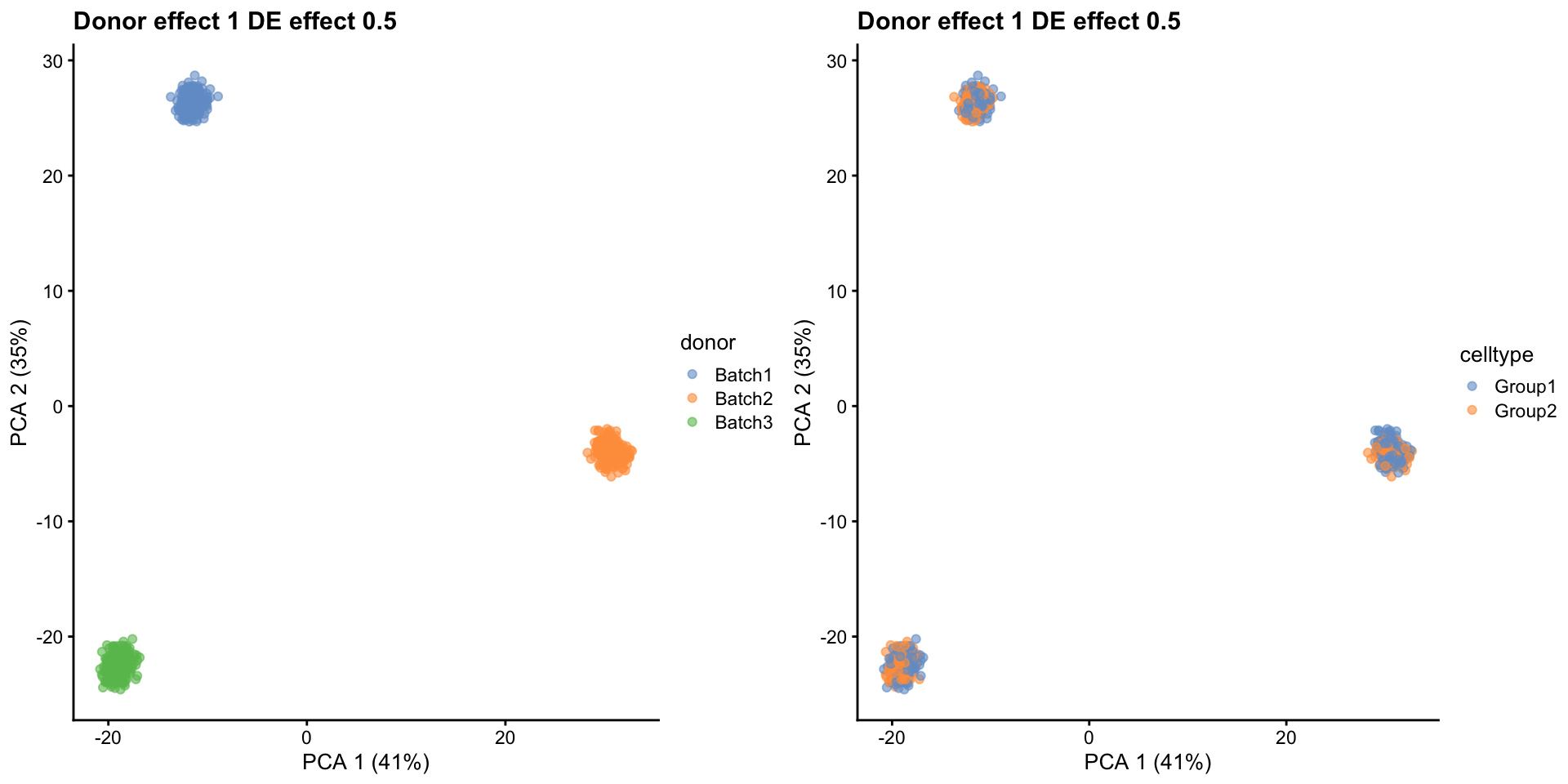

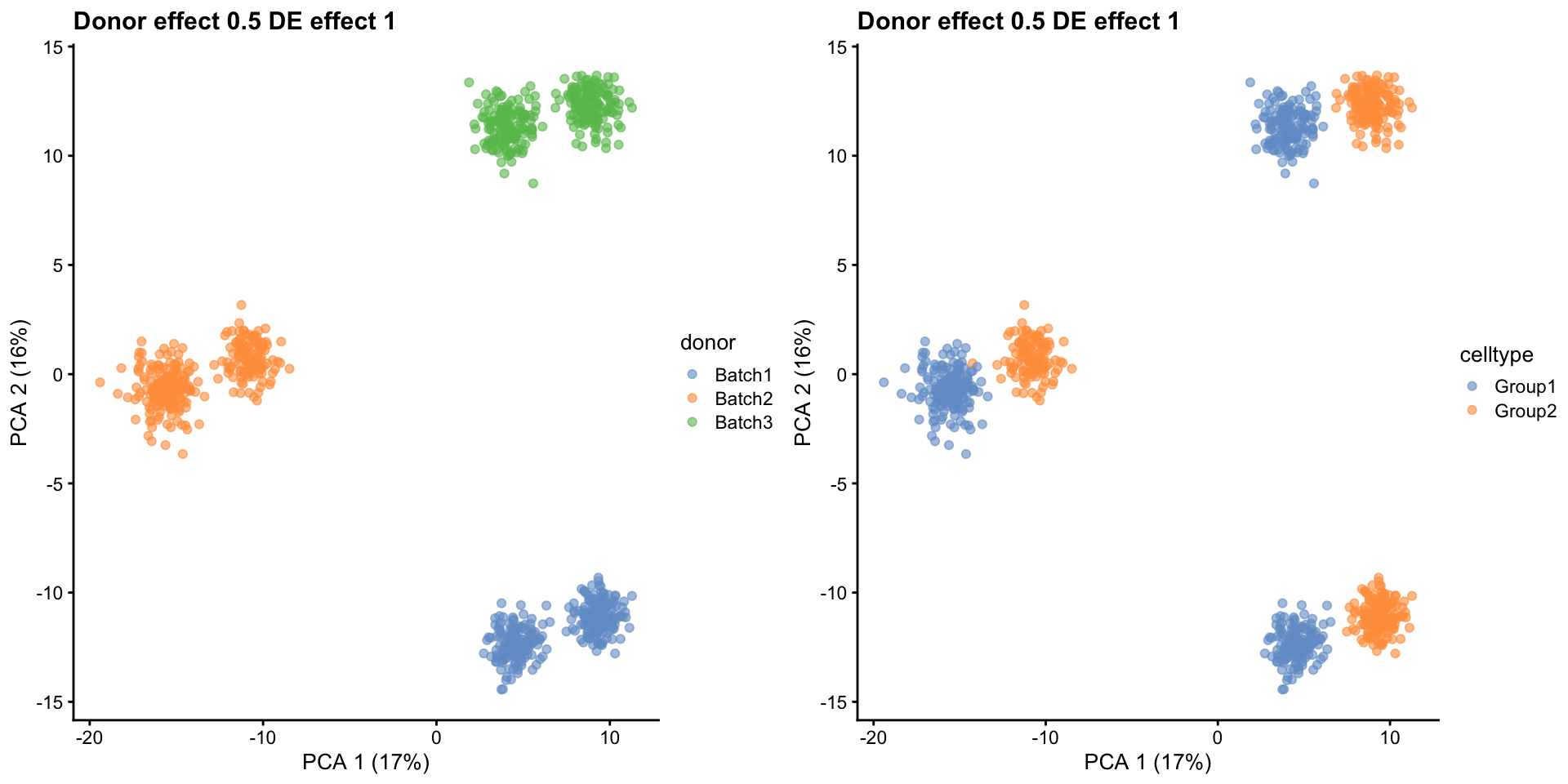

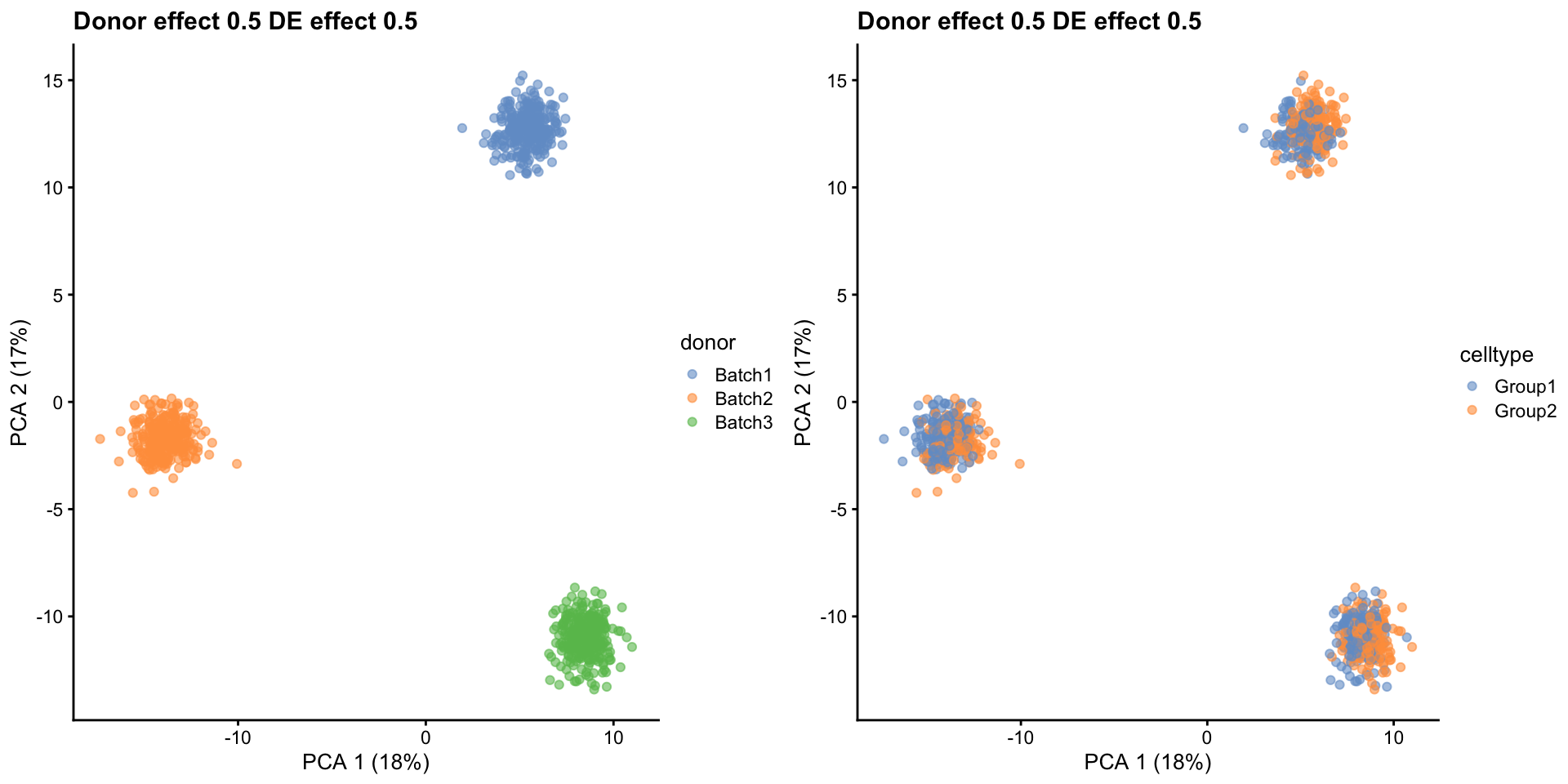

Visulization of Donor effect and DE effect

Past versions of unnamed-chunk-4-1.png

Version	Author	Date
612b34d	C-HW	2024-11-09

Past versions of unnamed-chunk-4-2.png

Version	Author	Date
612b34d	C-HW	2024-11-09

Past versions of unnamed-chunk-4-3.png

Version	Author	Date
612b34d	C-HW	2024-11-09

Past versions of unnamed-chunk-4-4.png

Version	Author	Date
612b34d	C-HW	2024-11-09

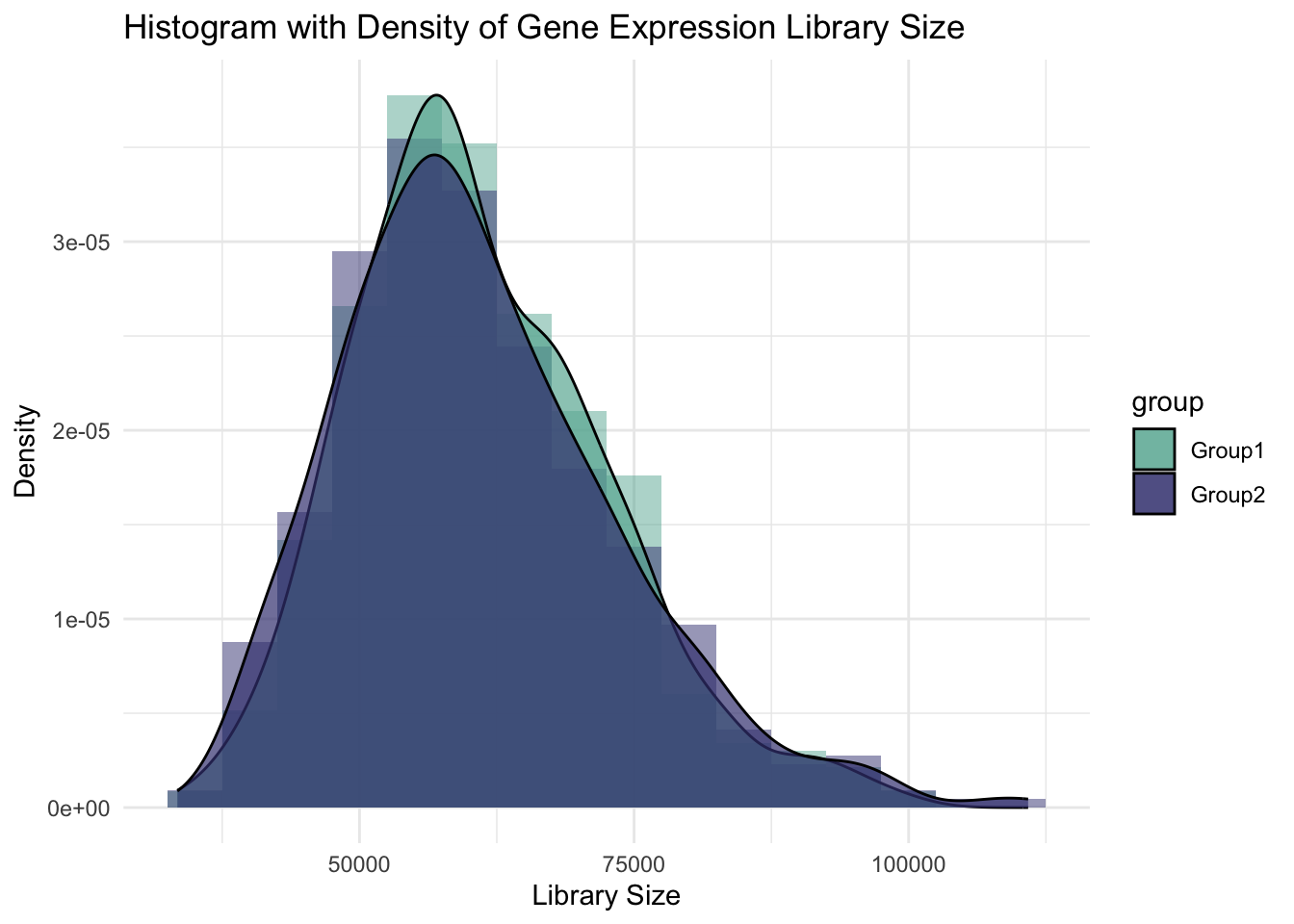

Past versions of unnamed-chunk-5-1.png

Version	Author	Date
612b34d	C-HW	2024-11-09

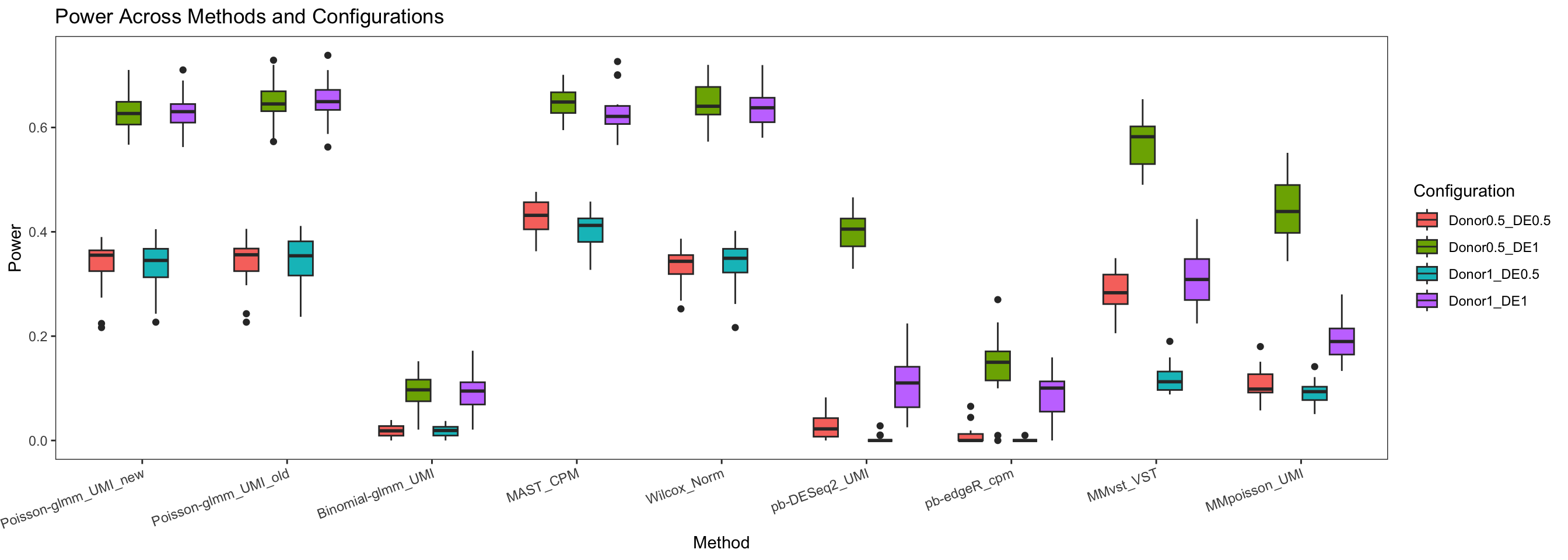

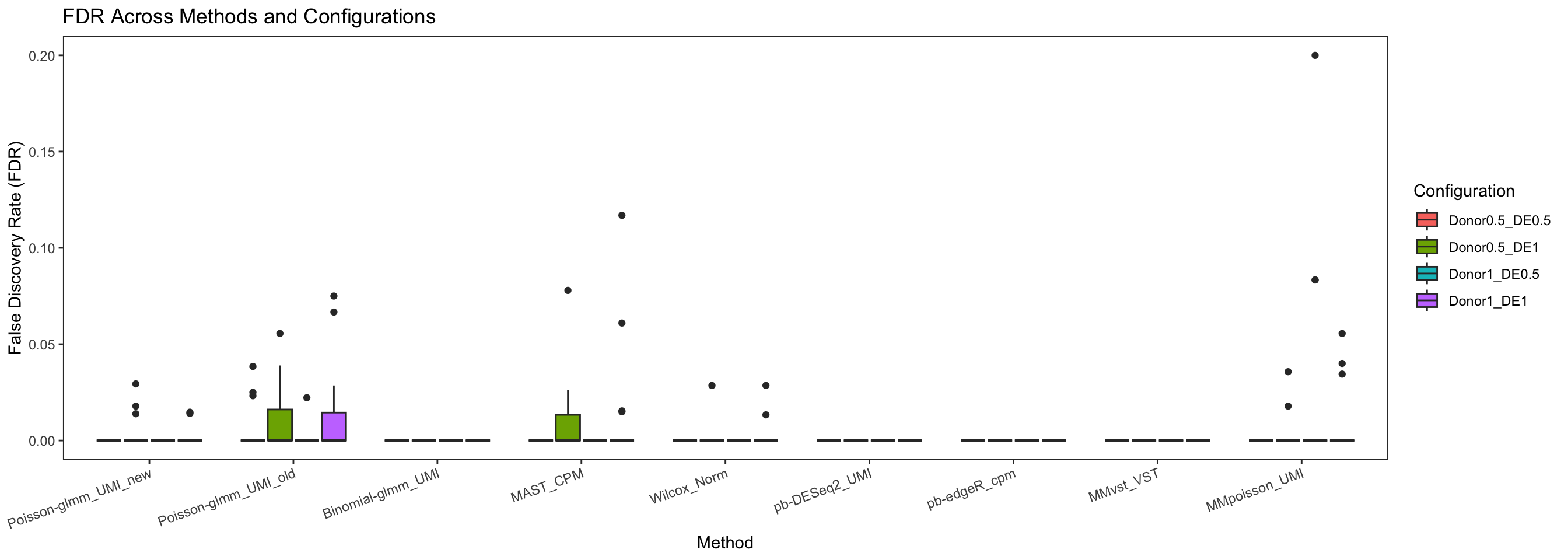

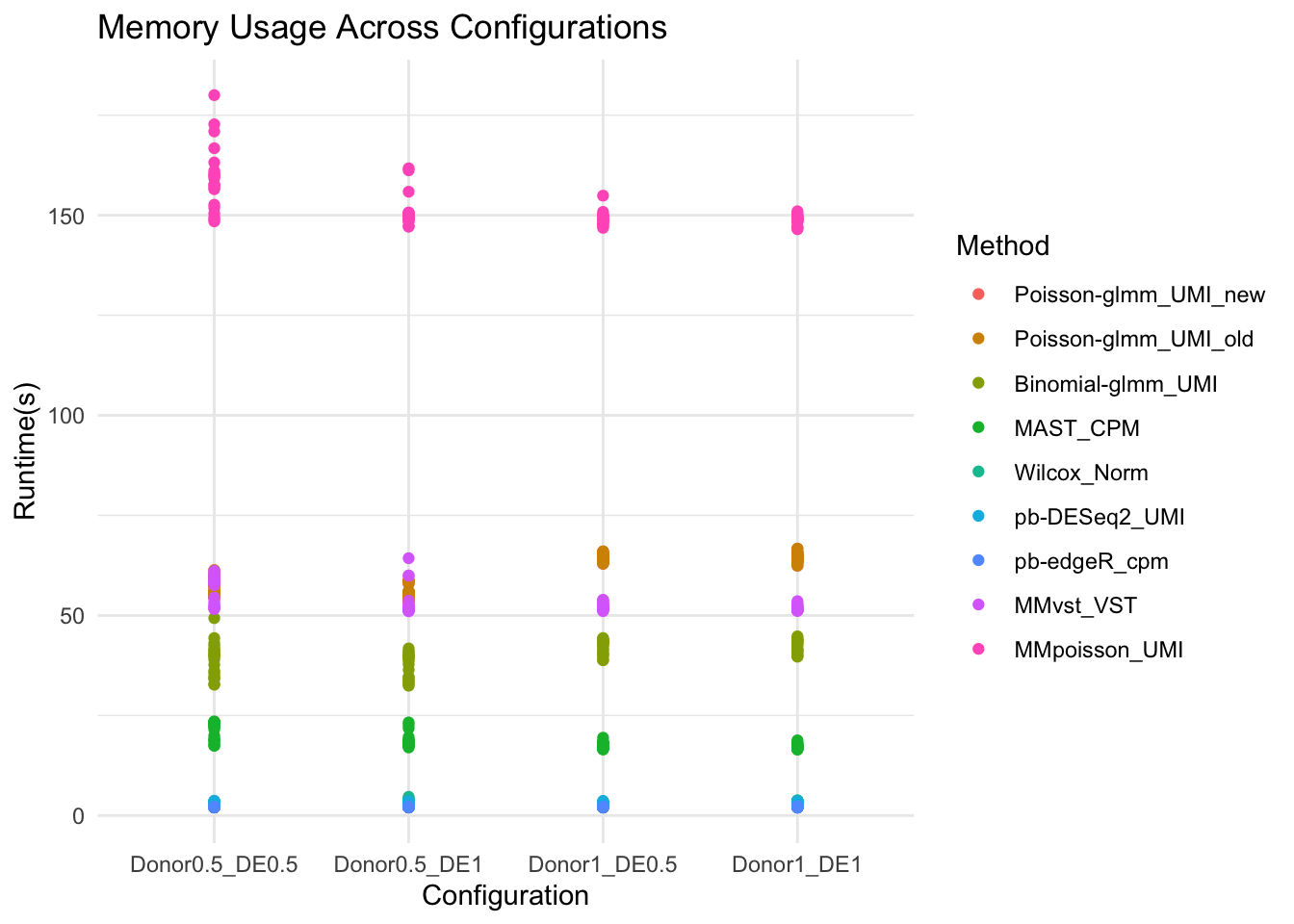

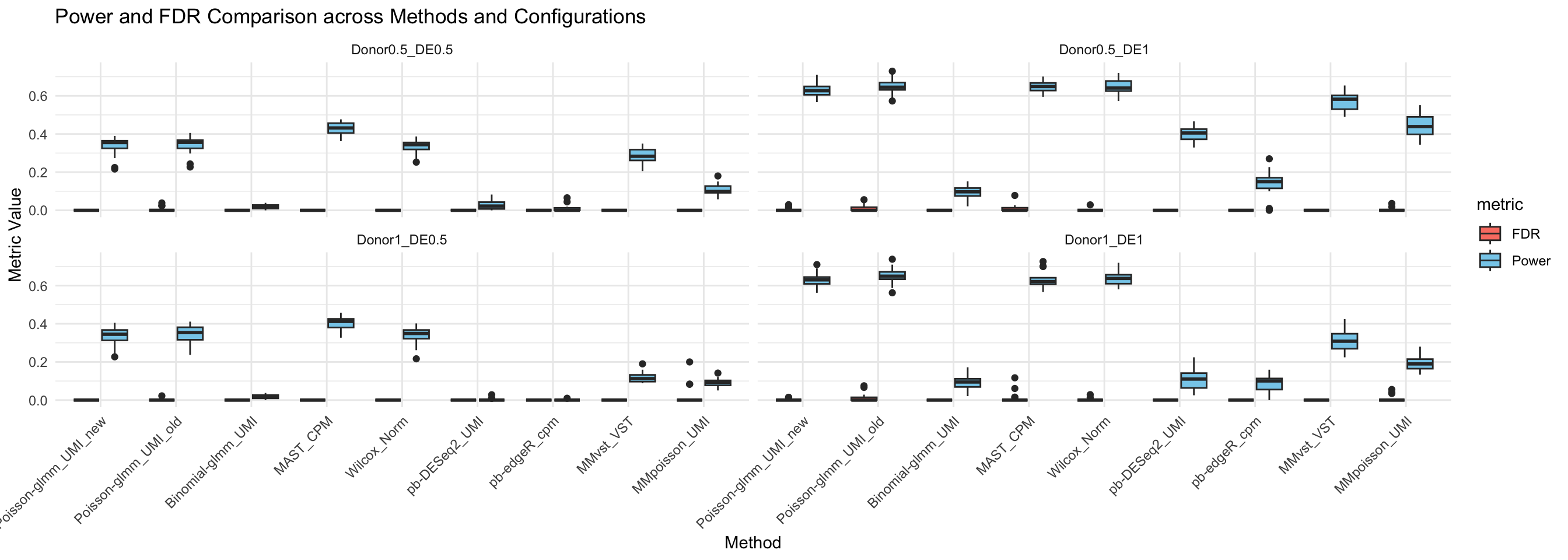

Simulation results

Past versions of unnamed-chunk-7-1.png

Version	Author	Date
612b34d	C-HW	2024-11-09

Past versions of unnamed-chunk-8-1.png

Version	Author	Date
612b34d	C-HW	2024-11-09

Past versions of unnamed-chunk-9-1.png

Version	Author	Date
612b34d	C-HW	2024-11-09

Past versions of unnamed-chunk-10-1.png

Version	Author	Date
612b34d	C-HW	2024-11-09

# A tibble: 36 × 3
   Configuration  Method               Average_Runtime
   <chr>          <fct>                          <dbl>
 1 Donor0.5_DE0.5 Poisson-glmm_UMI_new           57.2
 2 Donor0.5_DE1   Poisson-glmm_UMI_new           55.4
 3 Donor1_DE0.5   Poisson-glmm_UMI_new           64.3
 4 Donor1_DE1     Poisson-glmm_UMI_new           64.4
 5 Donor0.5_DE0.5 Poisson-glmm_UMI_old           57.2
 6 Donor0.5_DE1   Poisson-glmm_UMI_old           55.4
 7 Donor1_DE0.5   Poisson-glmm_UMI_old           64.3
 8 Donor1_DE1     Poisson-glmm_UMI_old           64.4
 9 Donor0.5_DE0.5 Binomial-glmm_UMI              39.0
10 Donor0.5_DE1   Binomial-glmm_UMI              37.5
11 Donor1_DE0.5   Binomial-glmm_UMI              42.1
12 Donor1_DE1     Binomial-glmm_UMI              42.2
13 Donor0.5_DE0.5 MAST_CPM                       21.3
14 Donor0.5_DE1   MAST_CPM                       18.8
15 Donor1_DE0.5   MAST_CPM                       17.5
16 Donor1_DE1     MAST_CPM                       17.3
17 Donor0.5_DE0.5 Wilcox_Norm                     2.37
18 Donor0.5_DE1   Wilcox_Norm                     3.04
19 Donor1_DE0.5   Wilcox_Norm                     2.37
20 Donor1_DE1     Wilcox_Norm                     2.98
21 Donor0.5_DE0.5 pb-DESeq2_UMI                   3.29
22 Donor0.5_DE1   pb-DESeq2_UMI                   3.21
23 Donor1_DE0.5   pb-DESeq2_UMI                   3.21
24 Donor1_DE1     pb-DESeq2_UMI                   3.22
25 Donor0.5_DE0.5 pb-edgeR_cpm                    2.07
26 Donor0.5_DE1   pb-edgeR_cpm                    2.07
27 Donor1_DE0.5   pb-edgeR_cpm                    2.05
28 Donor1_DE1     pb-edgeR_cpm                    2.06
29 Donor0.5_DE0.5 MMvst_VST                      56.9
30 Donor0.5_DE1   MMvst_VST                      53.3
31 Donor1_DE0.5   MMvst_VST                      52.3
32 Donor1_DE1     MMvst_VST                      51.8
33 Donor0.5_DE0.5 MMpoisson_UMI                 159.
34 Donor0.5_DE1   MMpoisson_UMI                 151.
35 Donor1_DE0.5   MMpoisson_UMI                 149.
36 Donor1_DE1     MMpoisson_UMI                 149.
